23AWG UTP 4 Pairs LAN Cable

Product Description

Risun Cable is specialized in producing Lan cable, Network cable: UTP Cat5e, UTP Cat6, FTP Cat5e, FTP Cat6, Telephone Cable, Alarm Cable and Coaxial Cables.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;

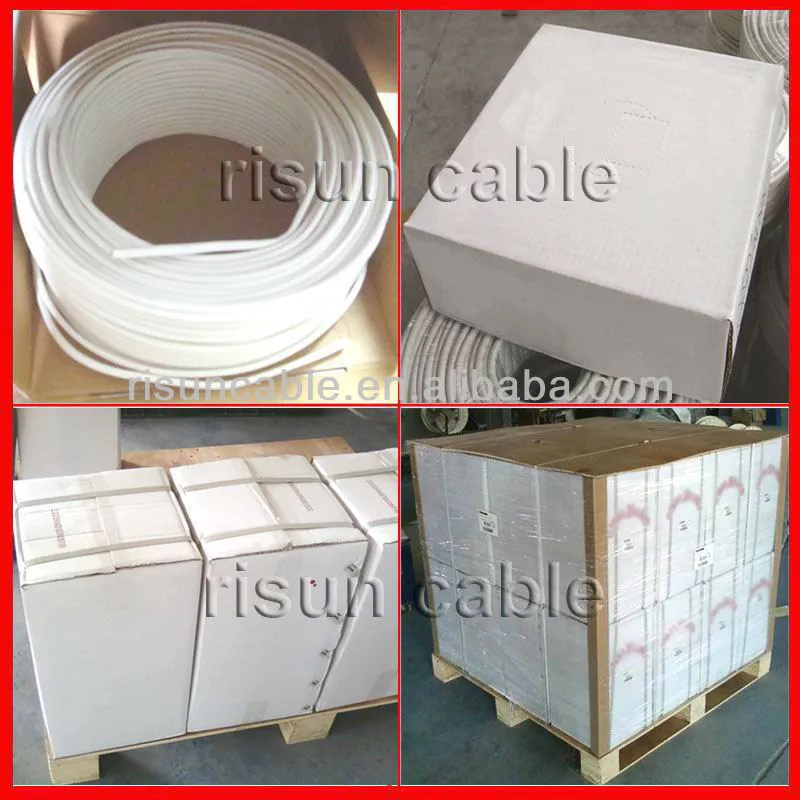

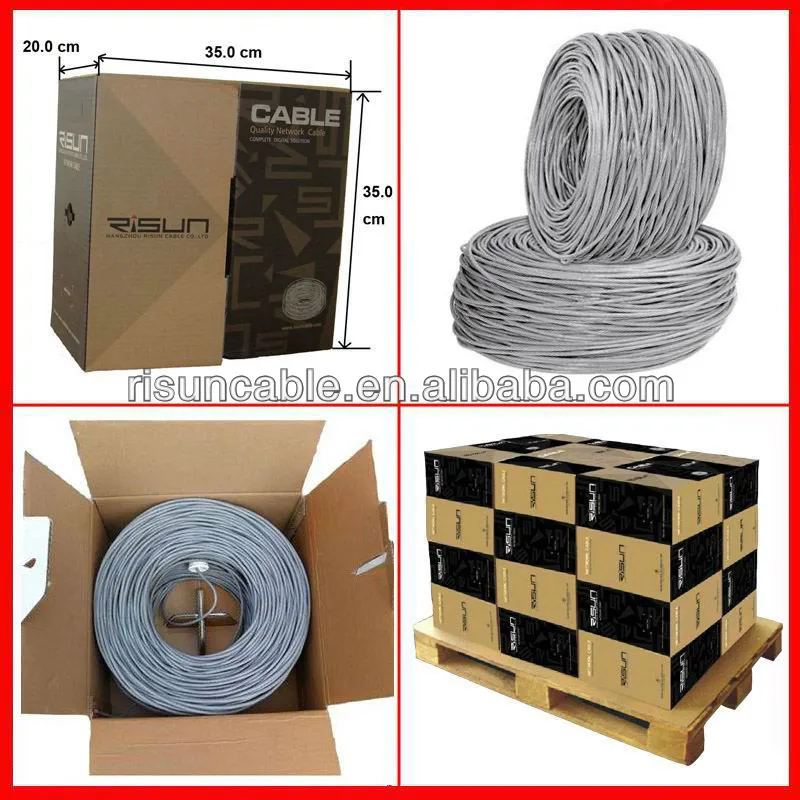

4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.

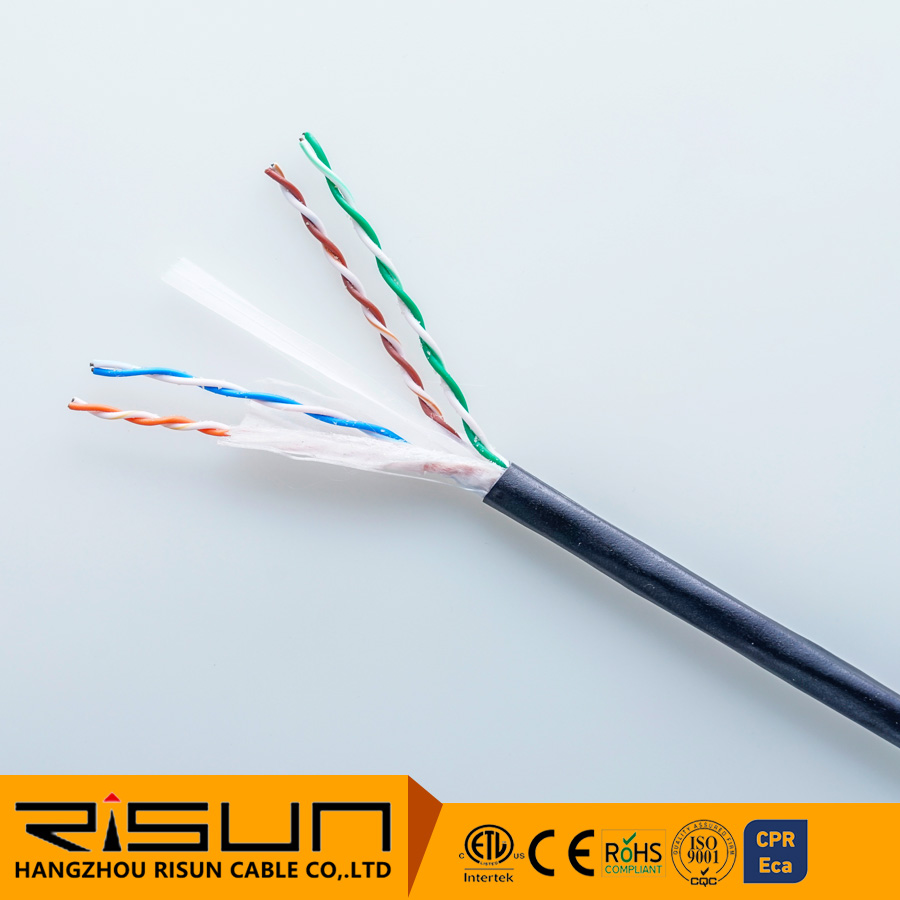

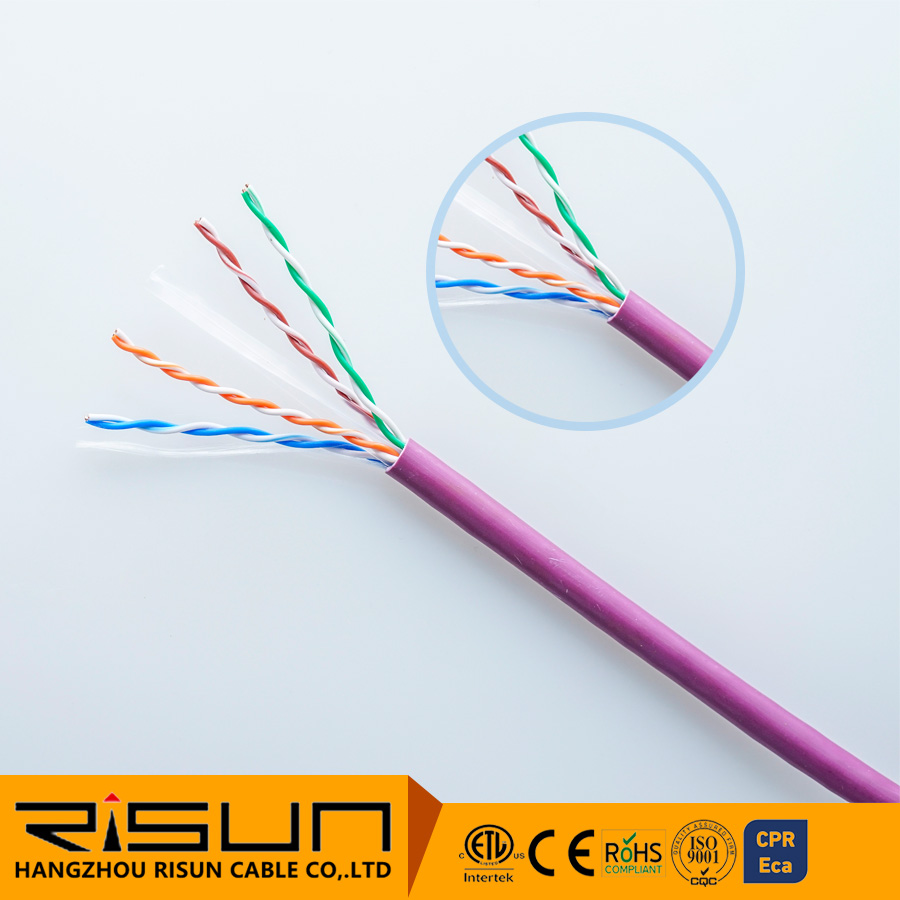

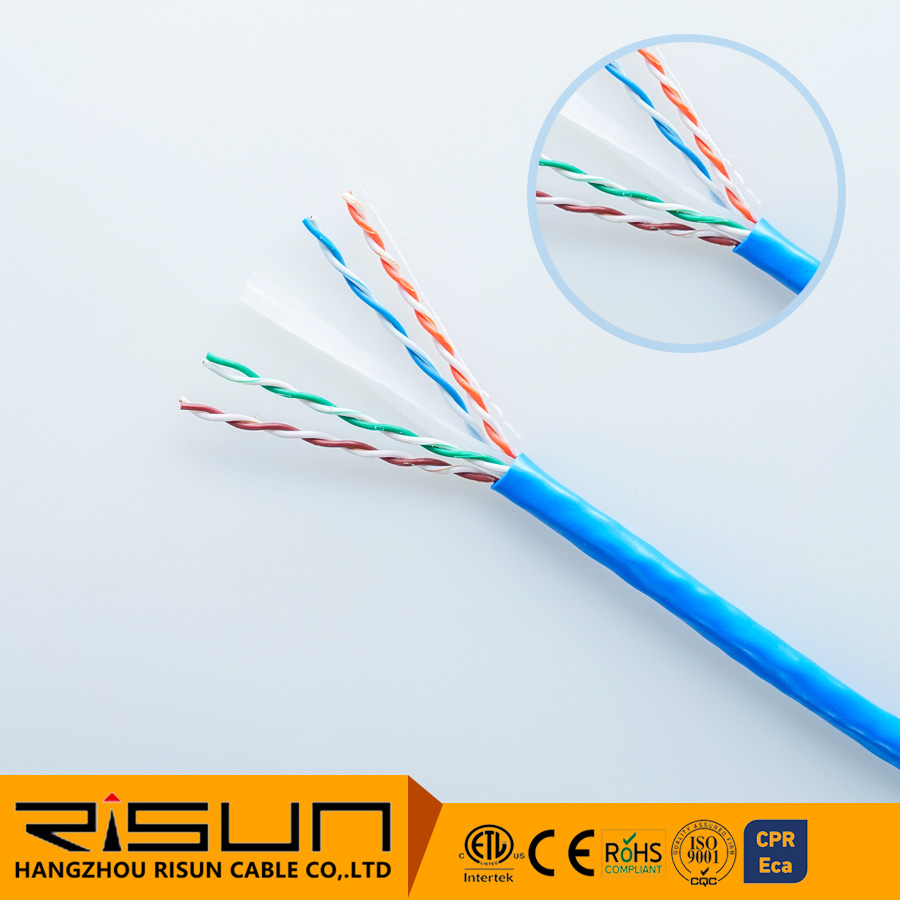

23AWG UTP 4 Pairs LAN Cable

Construction
Conductor	23AWG (Solid or Strand) CU/CCA
Insulation	HDPE 1.04 ± 0.06mm
Cores/Pairs	8/4
Drain wire	26AWG Tinned Copper
Shield	Polyester Tape / Al Foil
Sheath	6.30+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2

Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Cpacitance Unbalance	Max. 330pF/100m
Impendance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%

	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6
