50 Ohms Rg179 Coaxial Cable
MIL Standard high quality FEP coaxial cable RG179, Silver Plated CCS Coax CableThese kinds of cable are typically 50 ohm coaxial cables used in wireless communication, RF and microwave transmission, data transmission and instrumentation control. These cables ......
Send Inquiry
Product Description
MIL Standard high quality FEP coaxial cable RG179, Silver Plated CCS Coax Cable
These kinds of cable are typically 50 ohm coaxial cables used in wireless communication, RF and microwave transmission, data transmission and instrumentation control. These cables are based upon MIL-Spec designs and are often referred to by their RG type number. MIL-C-17 is the government specification document used to standardize coaxial cables, it has been in use since the 1940's.
Standard: MIL-C-17
Features:
1. Light weight.
2. Great flexibility,
3. Heat resistance,
4. Moisture resistance and corrosion resistance.
Meanwhile, it owns prominent electrical propertiesand mechanical properties, such as great shield, low attenuation, small VSWR.
Application:
It is widely used in RF signal transmission of communication, electronic countermeasure, military navigation, radar and aviation etc.
Other Related Products:
RG178, RG316
Assembly: UFL, SMB, SMA
These kinds of cable are typically 50 ohm coaxial cables used in wireless communication, RF and microwave transmission, data transmission and instrumentation control. These cables are based upon MIL-Spec designs and are often referred to by their RG type number. MIL-C-17 is the government specification document used to standardize coaxial cables, it has been in use since the 1940's.
Standard: MIL-C-17
Features:
1. Light weight.
2. Great flexibility,
3. Heat resistance,
4. Moisture resistance and corrosion resistance.
Meanwhile, it owns prominent electrical propertiesand mechanical properties, such as great shield, low attenuation, small VSWR.
Application:
It is widely used in RF signal transmission of communication, electronic countermeasure, military navigation, radar and aviation etc.
Other Related Products:
RG178, RG316
Assembly: UFL, SMB, SMA

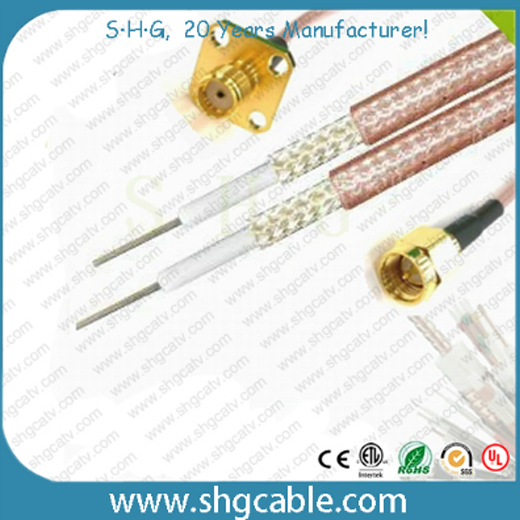

| Construction | ||
| Inner conductor | Silver plated copper covered steel | 7 x 0.10 mm |
| Dielectric | Solid PTFE | Φ1.60±0.10mm |
| Outer conductor(shield) | Silver plated copper (0.1mm) | Φ2.15±0.10mm |
| Outer sheath | FEP | Φ2.55±0.10mm |
| Electrical & Mechanical Characteristics | ||
| Impedance | 75±5 Ohm | |
| Nominal capacitance | 63 pF/m | |
| Velocity of propagation | 70% | |
| Inner conductor resistance | 800.5 Ohm/Km | |
| Outer conductor resistance | 27.9 Ohm/Km | |
| Operatig Voltage(max) | 0.9 KV | |
| Operating temperature range | -55°C - +200 °C | |
| Cable weight (approx.) | 31 Kg/Km | |
| Screening effectiveness | >60 dB | |
| Attenuation | ||
| Frequency (MHz) | Max. Attenuation | |
| (MHz) | (dB/100 m) | (dB/100ft) |
| 100 | 28 | 8.5 |
| 200 | 39 | 11.9 |
| 400 | 56 | 17.1 |
| 900 | 85 | 25.9 |
| 1200 | 98 | 29.9 |
| 1500 | 110 | 33.5 |
| 1800 | 121 | 36.9 |
| 2000 | 128 | 39 |
| 2500 | 144 | 43.9 |
