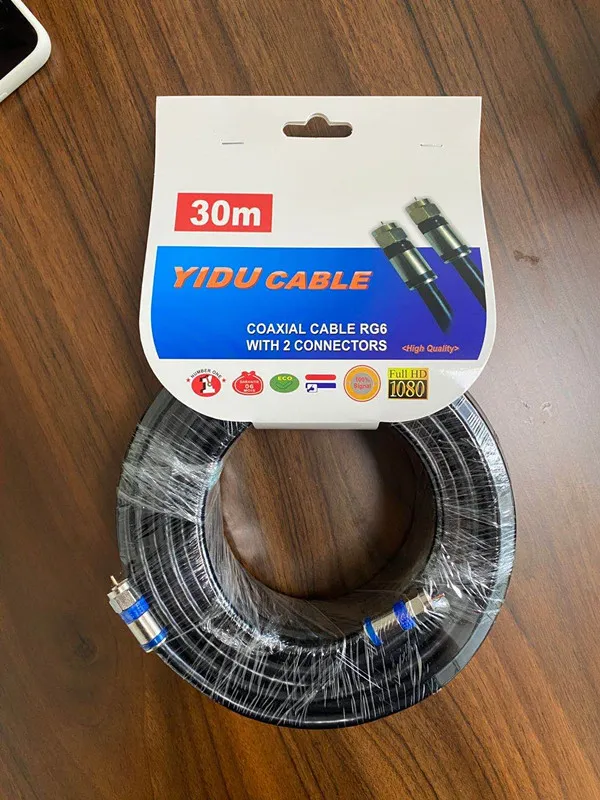

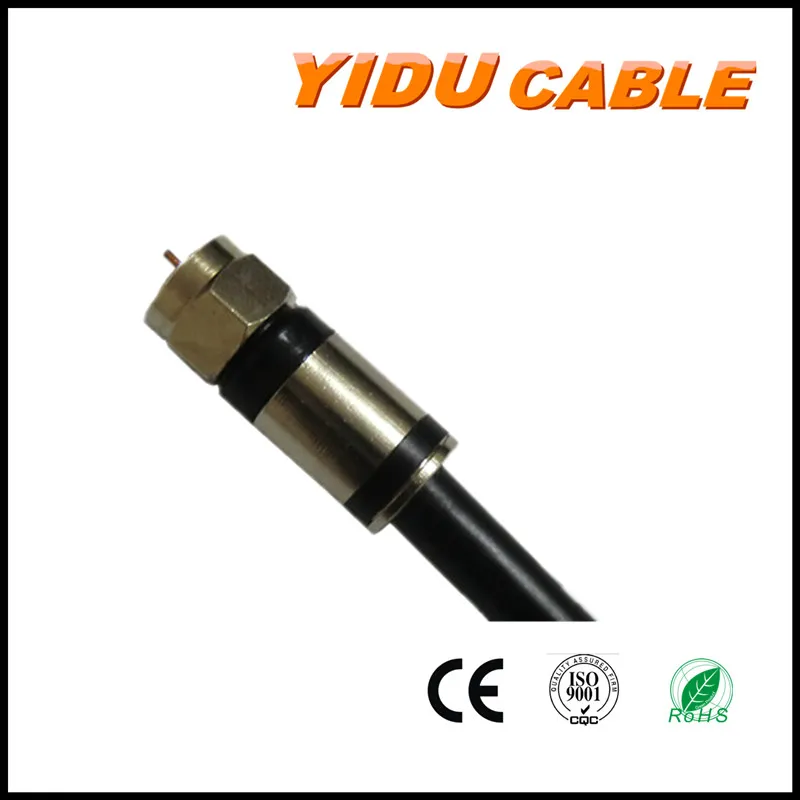

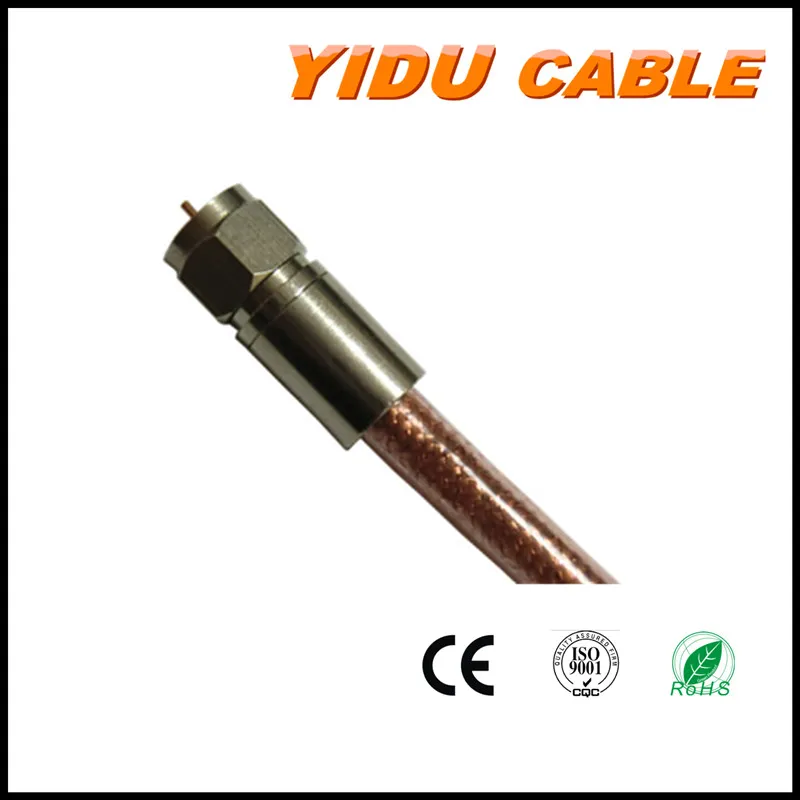

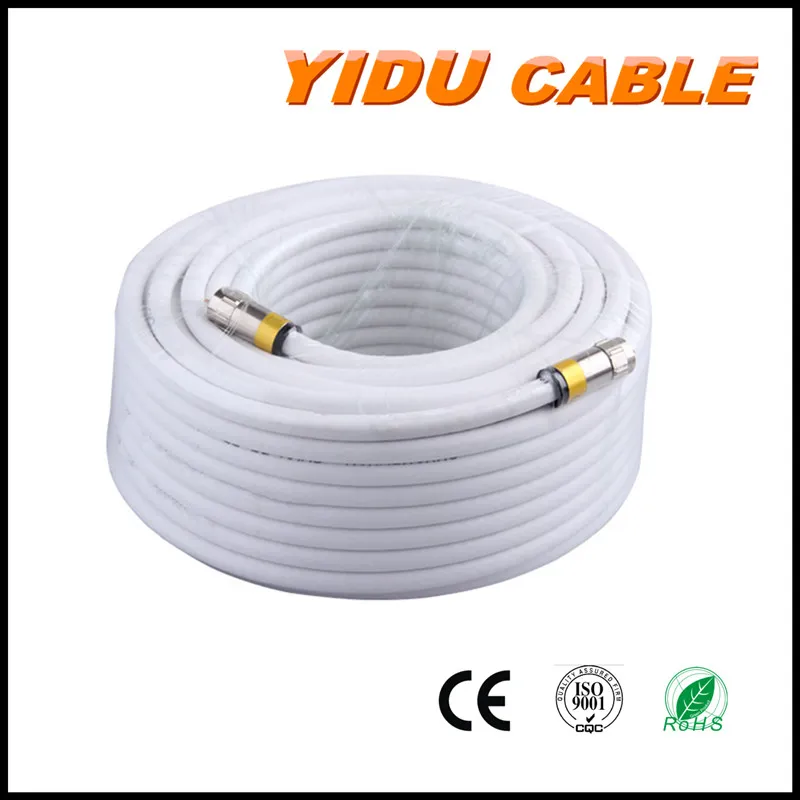

5m 10m 20m 50m 100m Satellite CATV Coaxial Cable 2.5c2V RG6 Coaxial Cable with Connector

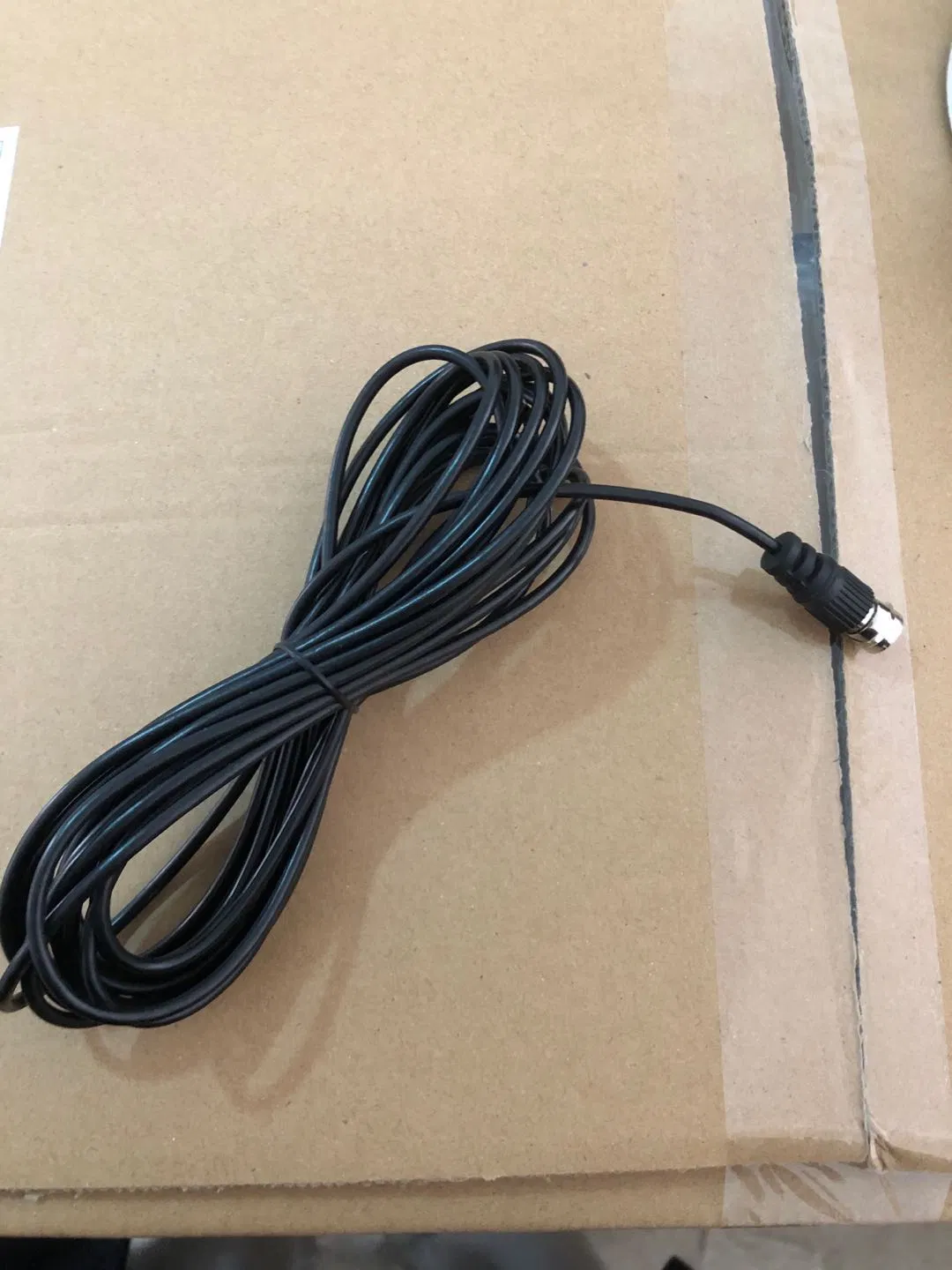

Detailed Photos Indoor CCS 5c2v CATV RG6 Communicate TV Cable with RF Compression Connector Product Description Product Specification RG6/RG6U coaxial cable specificationsMaterial of Inner ConductorBare Copper, CCSStructure of Inner Conductor1/1.02mmMaterial of InsulationFoam PEDiameter of Insulati......
Send Inquiry
Product Description

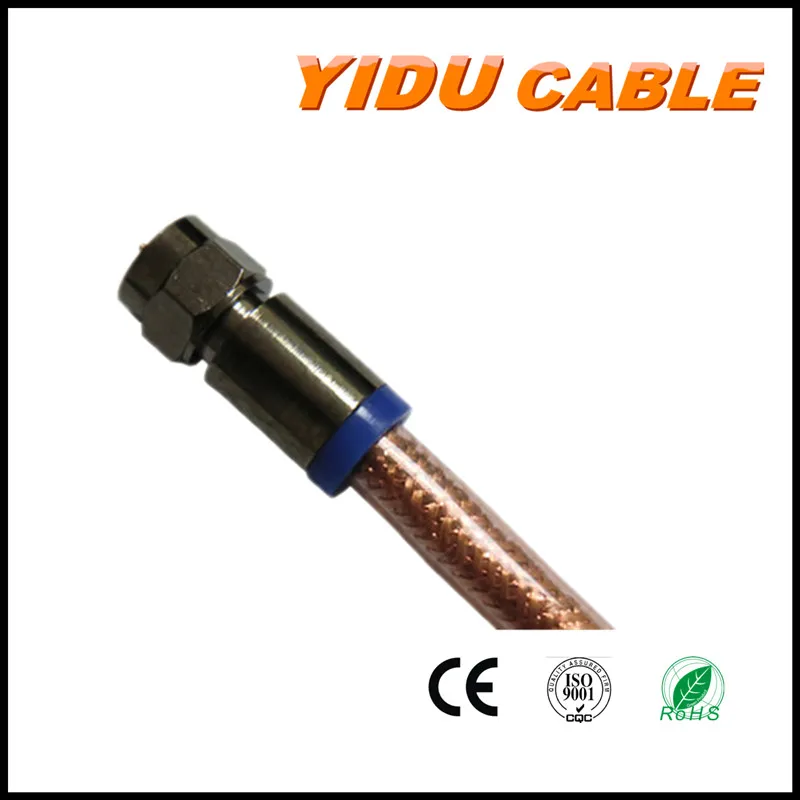

Indoor CCS 5c2v CATV RG6 Communicate TV Cable with RF Compression Connector
Product Specification

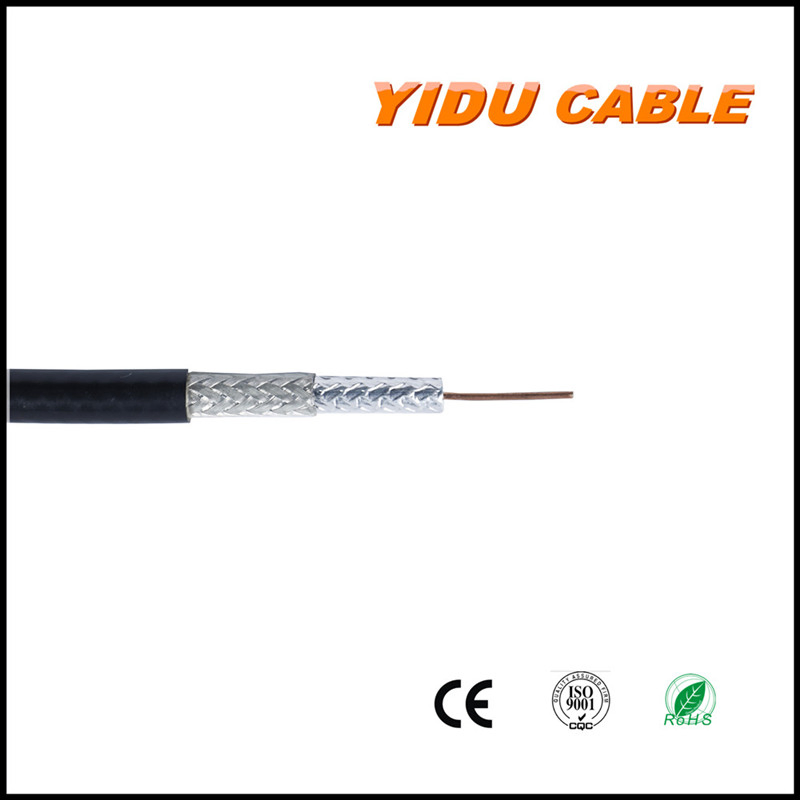

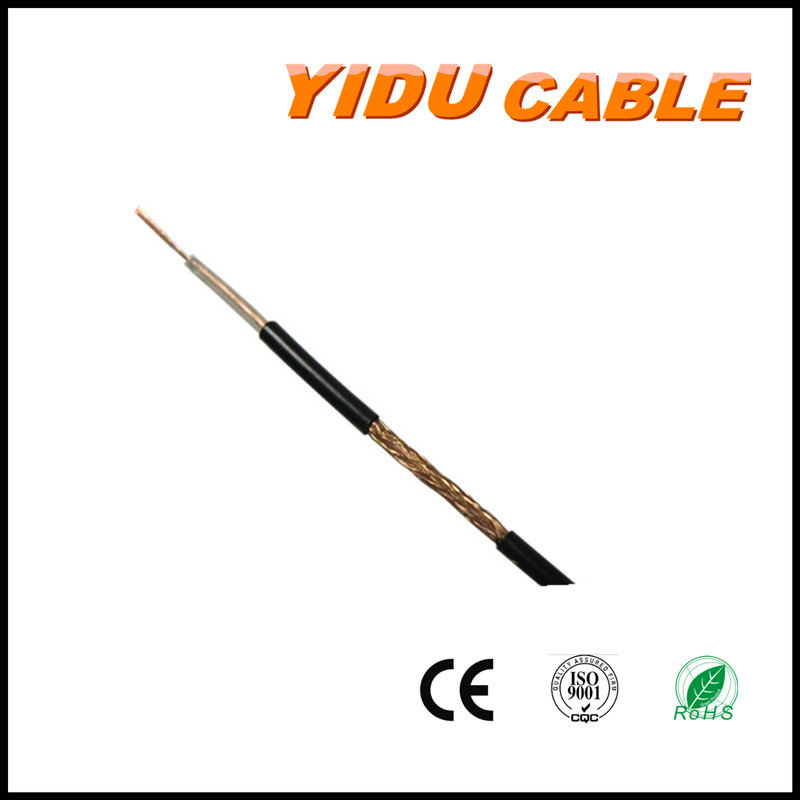

RG6/RG6U coaxial cable specifications | |
Material of Inner Conductor | Bare Copper, CCS |
Structure of Inner Conductor | 1/1.02mm |
Material of Insulation | Foam PE |
Diameter of Insulation | 4.57mm |
1st Shielding | Aluminum Foil |
Material of Braiding(2nd Shielding) | CCA, Bare Copper, Tinned Copper |
Structure of Braiding | 128/112/96/64/48/32*0.12mm |
Material of Jacket | PVC |
Diameter of Jacket | 7.10mm |
Working temp | -40ºC/80ºC |
Impedance | 75Ω±2 |
RG59 / RG59 2C cable Specification | |
| Center conductor | Copper Clad Steel,Bare Copper,Tinned Copper |
| Al-foil | Unbonded AP,Bonded AP,APA |
| Braiding wire | AL_MG, Bare Copper,Tinned Copper |
| Braiding wire diameter | 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm |
| Braiding net | 32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available |
| Braiding coverage | Between 30% - 100% available |
| PVC jacket | Flame resistant, UV,or UL available |
| With Siamese | 2*15*0.15mm, 2*18*0.18mm,2*7*0.38mm, CCA/BC/Tinned Copper |

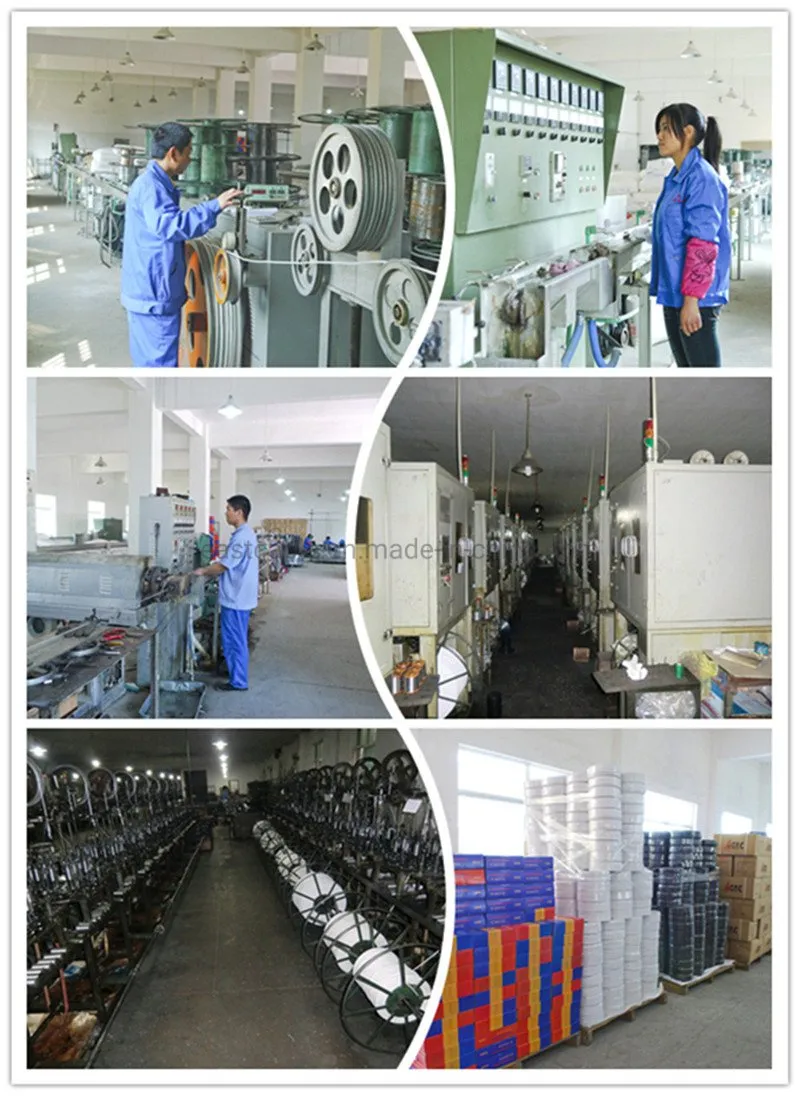

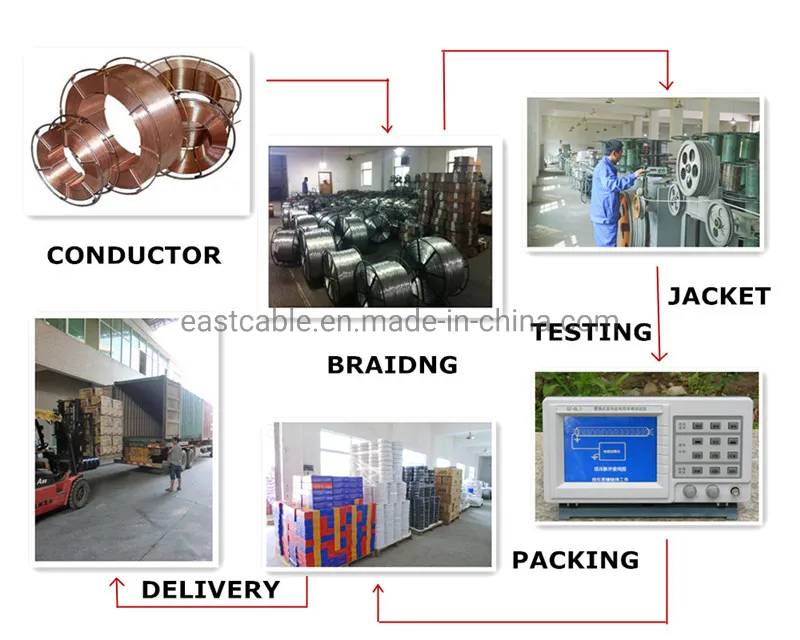

Production Procedure

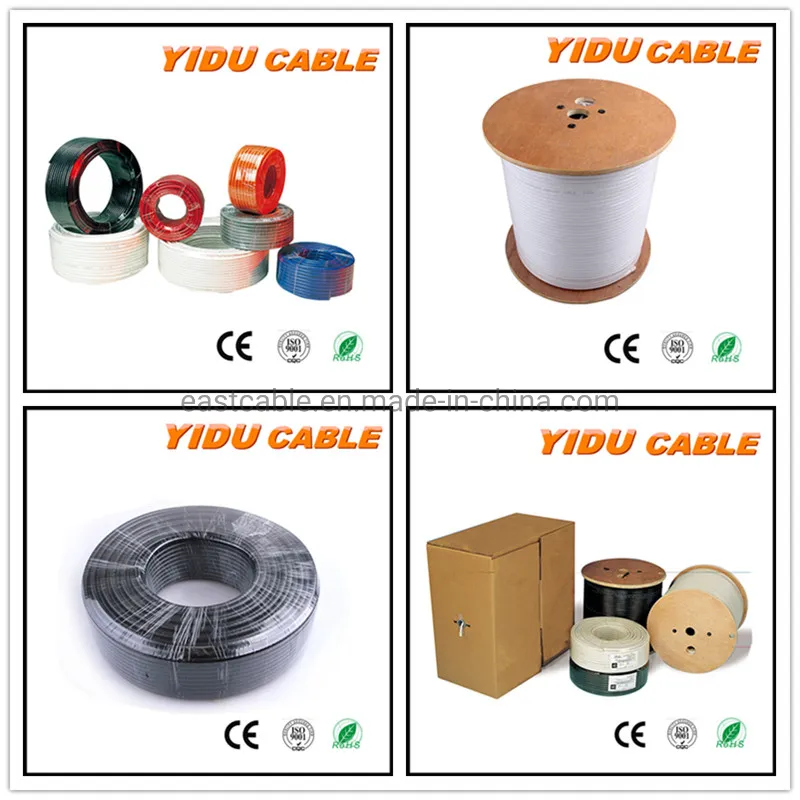

Packaging & Shipping
Any question for coaxial cable, welcome to contact us!
