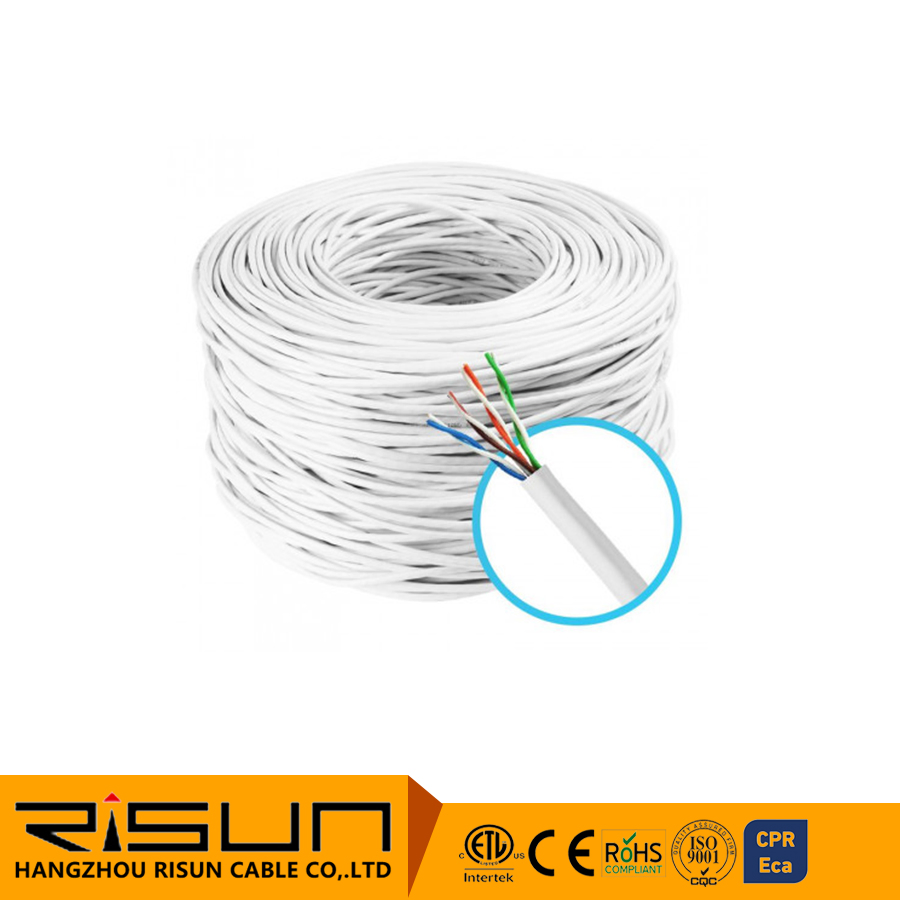

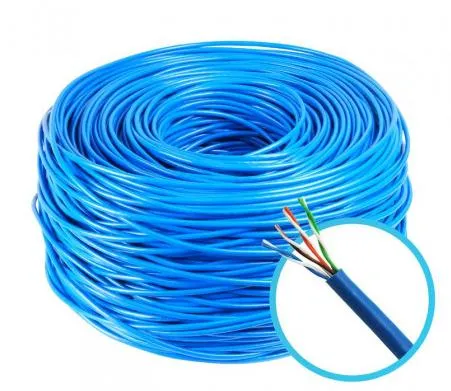

Cabo De Rede Cftv 4 Pares Azul 24AWG Risun-305m Cable

Product Description

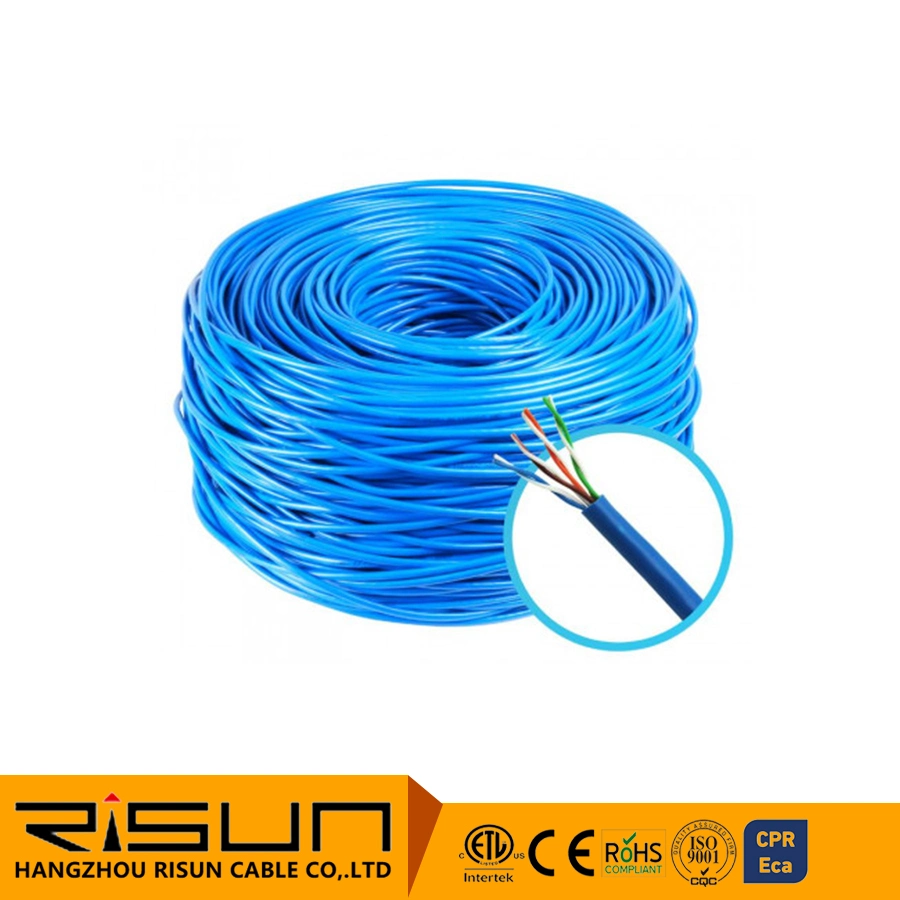

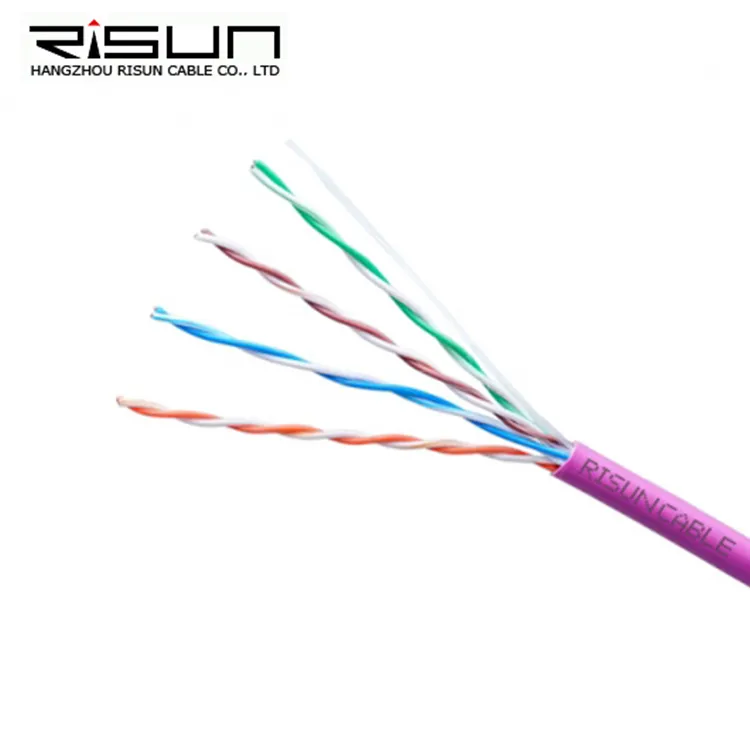

CABO DE REDE CFTV 4 PARES AZUL 24AWG Risun-305M Cable

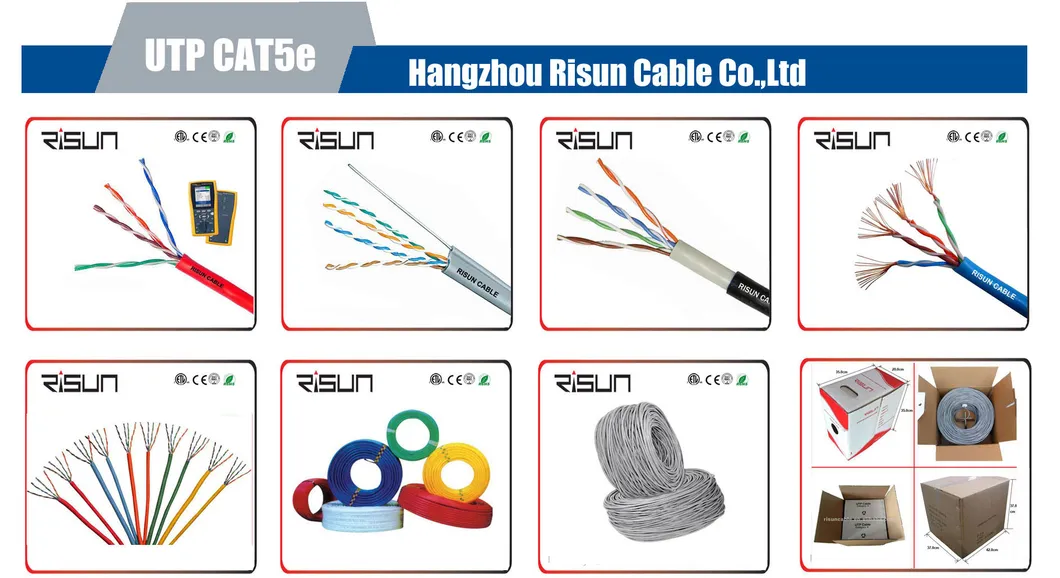

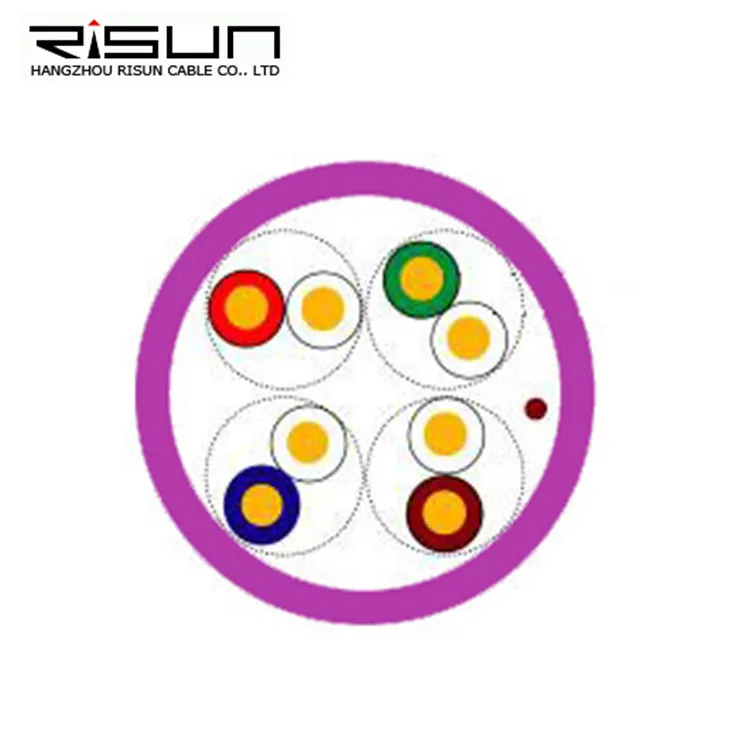

Lan Cable UTP Cat5e
_Conductor	_{24AWG (0.50mm)CCA/Bare Copper}
_Insulation	_{0.90mm HDPE}
_Ripcord	_Yes
_Sheath	_{5.0mm PVC / PE / LSZH}

Mechanical Properties
Elongation	Min.300%	Tensile Strength	Min.1.68kg/mm²
Temperature Range	-25 up to +75ºC

Electrical Properities
Conductor Resistance	Max.9.38Ω/100m	Capacitance Unbalance	Max.330pF/100m
Resistance Unbalance	Max.2%	Impedence	100±15Ω
Insulation Resistance	Max.150Ω/km	Spark Test	2000V
Mutual Capacitance	Max.5600pF/100m	Velocity of Propagation	67%

Attenuation @68°F(20ºC)
Frequency (MHz)	RL(≥dB)	Attenuation (≤dB/100m)	Next (≥dB/100m)	Psnext (≥dB/100m)	Elfext (≥dB/100m)	Pselfext (≥dB/100m)
1	20	2	65.3	62.3	63.8	60.8
4	23	4.1	56.3	53.3	51.8	48.8
8	24.5	5.8	51.8	48.8	45.7	42.7
10	25	6.5	50.3	47.3	43.8	40.8
16	25	8.2	47.2	44.4	39.7	36.7
20	25	9.3	45.8	42.8	37.8	34.8
25	24.3	10.4	44.3	41.3	35.8	32.8
31.25	23.6	11.7	42.9	39.9	33.9	30.9
62.5	21.5	17	38.4	35.4	27.9	24.9
100	20.1	22	35.3	32.3	23.8	20.8

Cabo De Rede Cftv 4 Pares Azul 24AWG Risun-305m Cable

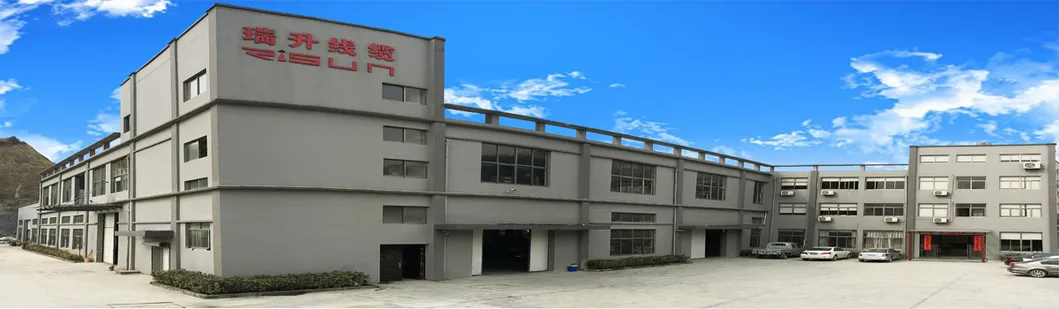

RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Cabo De Rede Cftv 4 Pares Azul 24AWG Risun-305m Cable

Cabo De Rede Cftv 4 Pares Azul 24AWG Risun-305m Cable

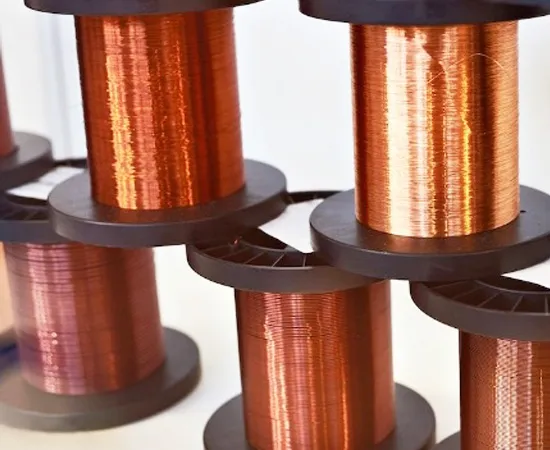

Quality Cables with Reliable Materials

Manufacturing a quality Cables starts with using quality materials and components.
We strictly evaluate the quality and reliability of incoming materials to manage our supply chain, and our clients can be absolutely confident about our products.

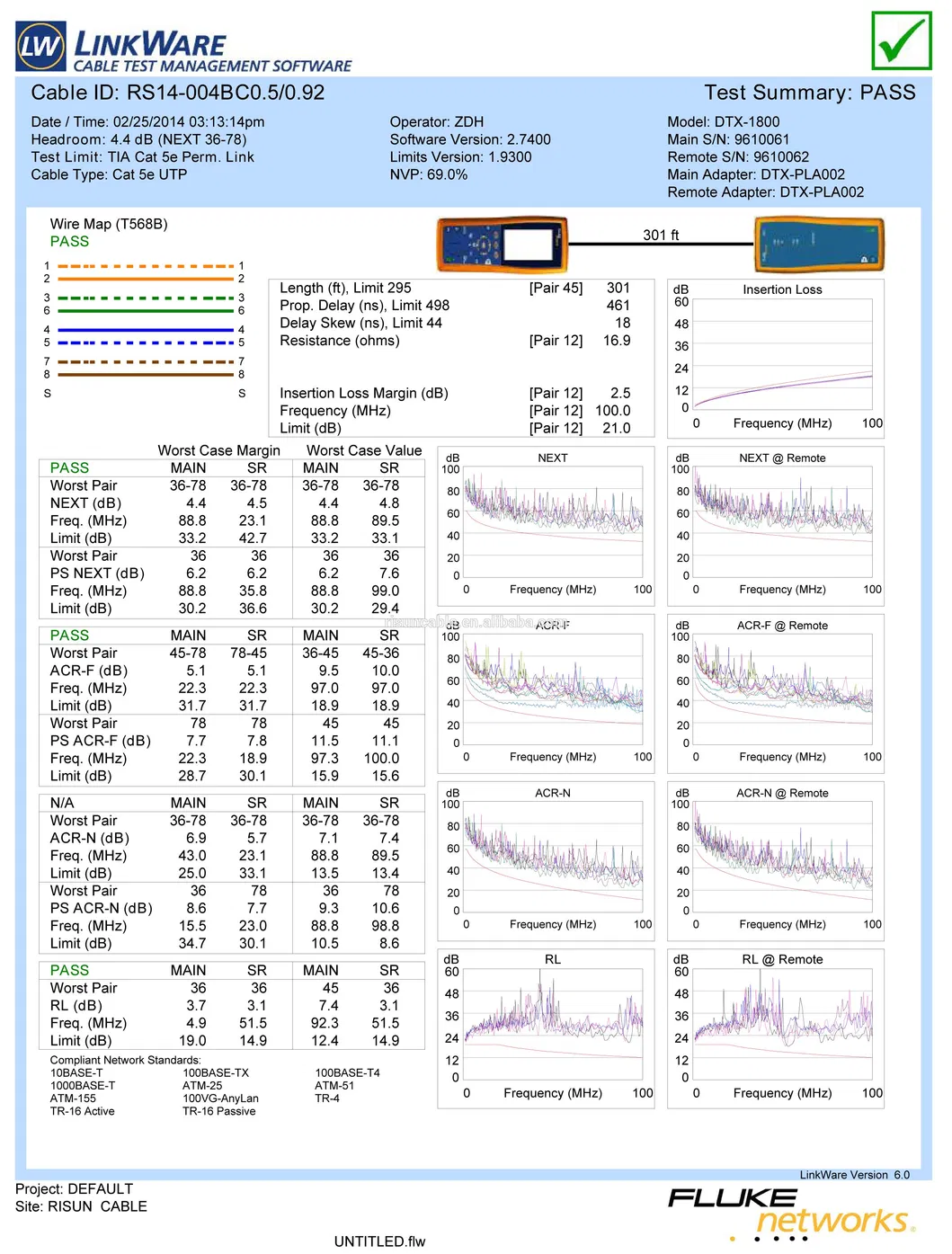

Double Check, Double Assurance

We develop strict quality control standards in manufacturing to ensure consistency in processes, and we carry out a double-check before delivery.
We conduct final and complete inspection on each of Cables to ensure that the goods we deliver are perfect, whether it is a small or large order.

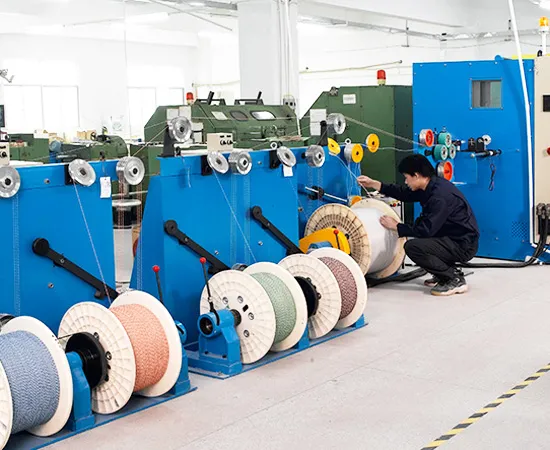

Efficiency from the very first step

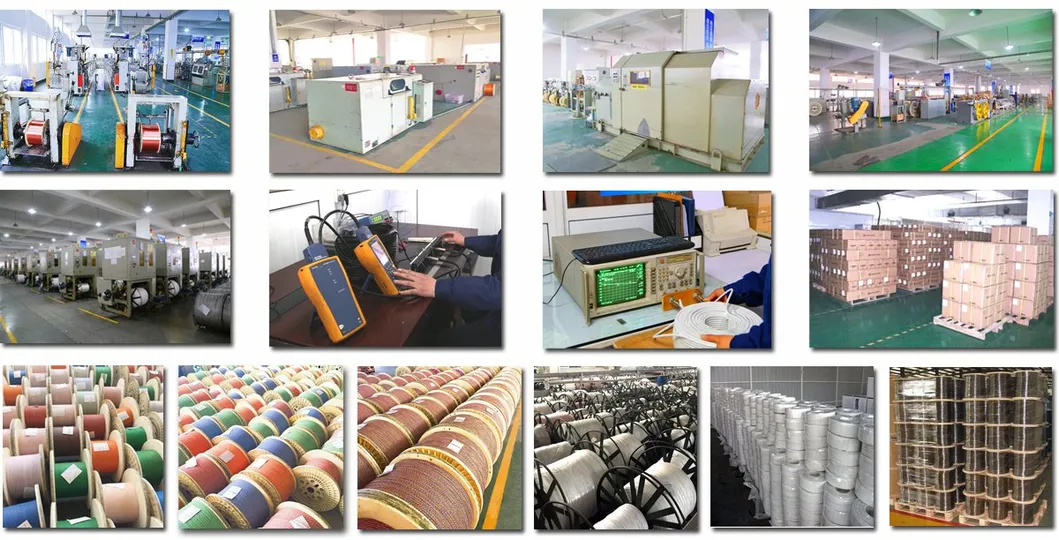

We have the full control over our process,from raw material to cable cutting to finishes.
as all the product phases, such as design,engineering. product development and production. are made exclusive by us in our plant, which allows us to:

keep full traceability of our final product
assure high quality product level
customer-oriented production
quick reaction to market requirements

Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.

Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CALBES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
