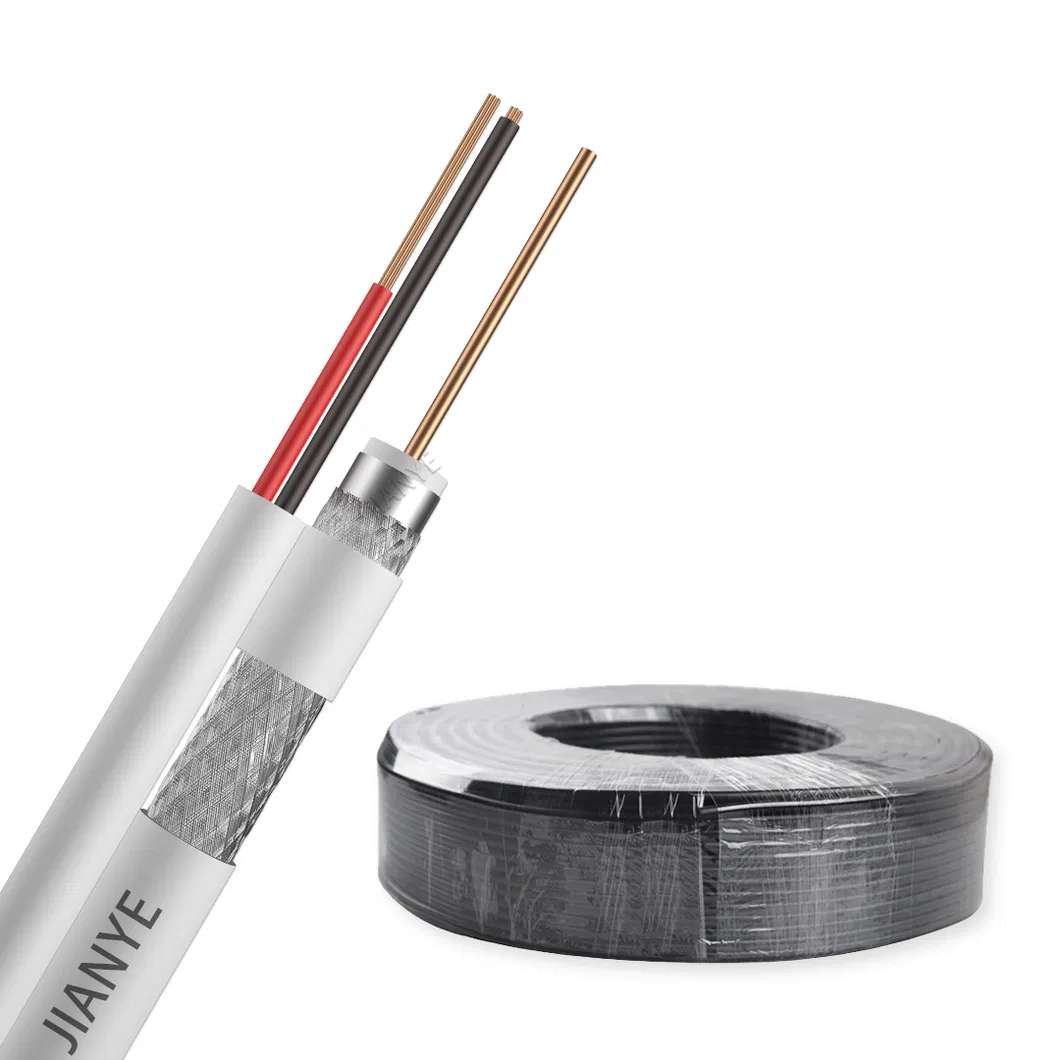

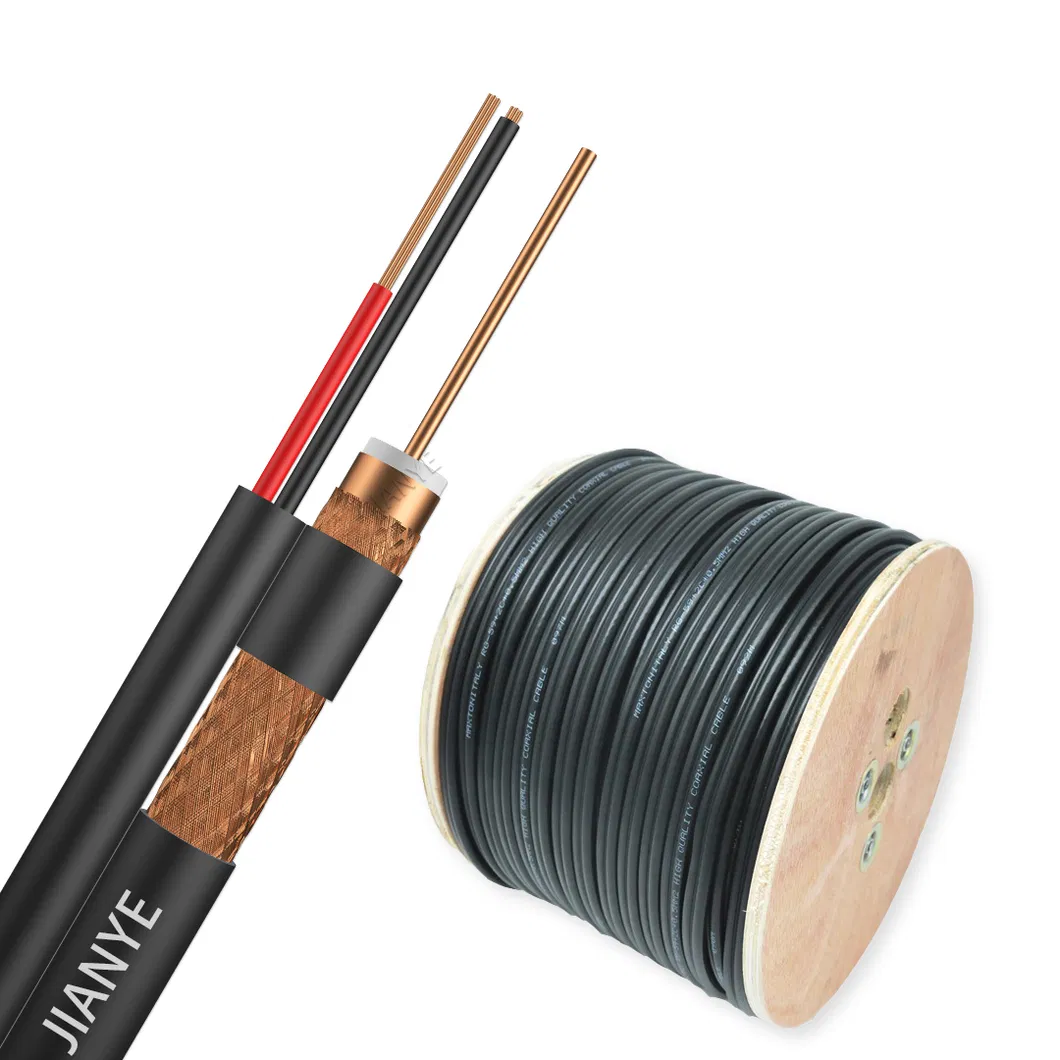

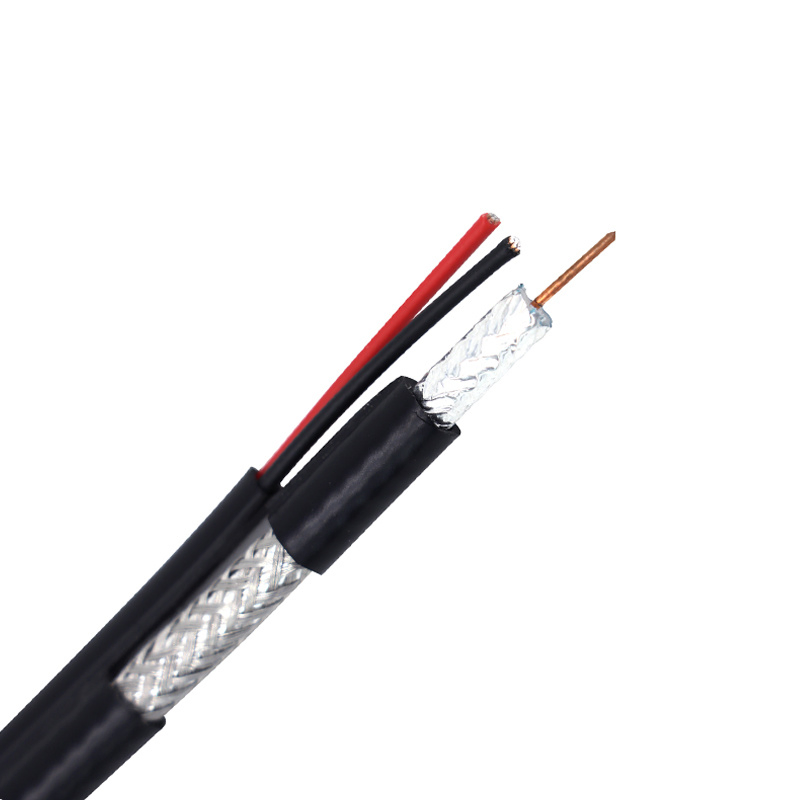

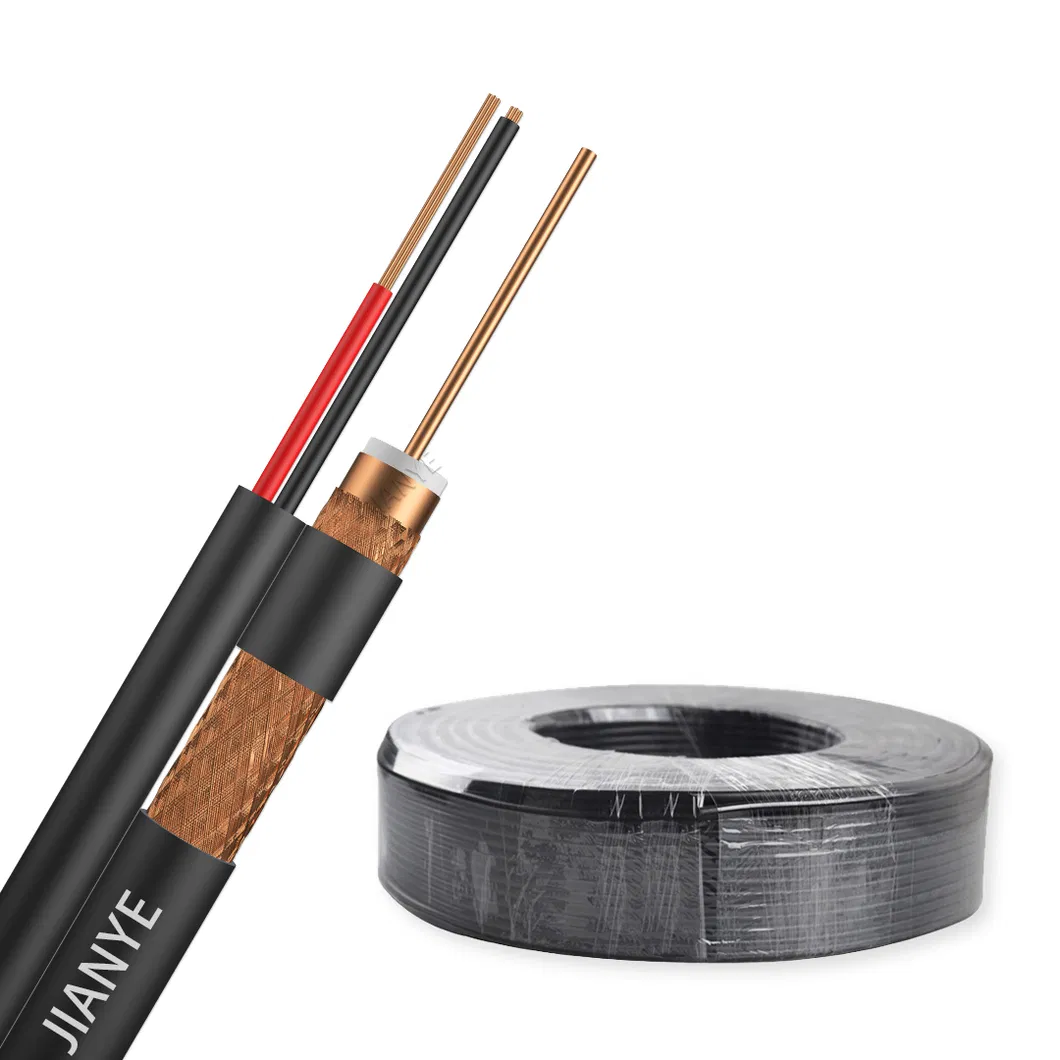

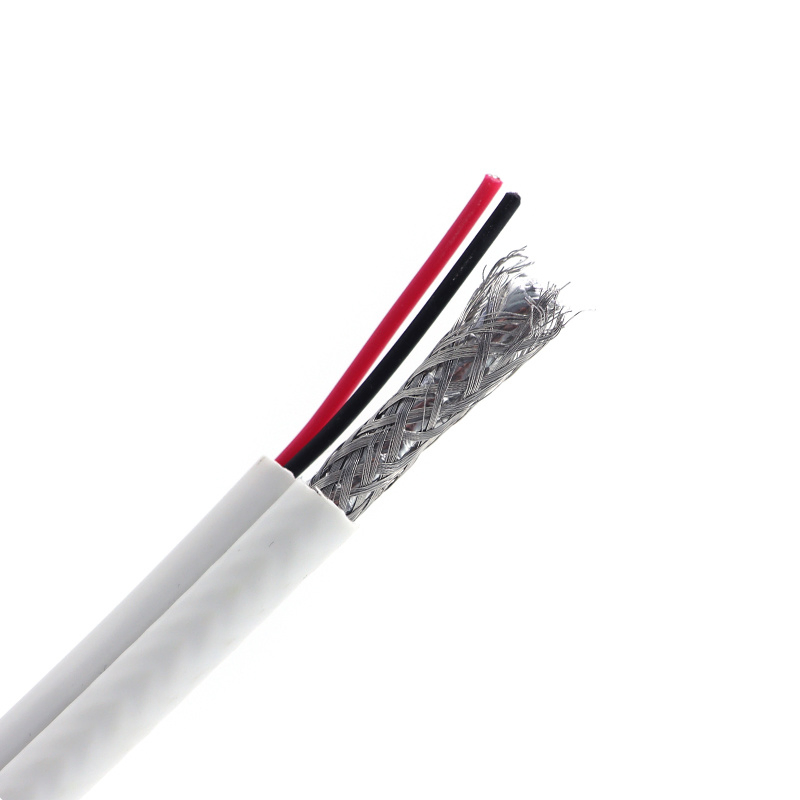

High Quality Rg59 2c /RG6 CCTV Cable 75ohm 305m 1000FT Security Camera Coaxial Cable for Communication
High Quality RG59 2C /RG6 CCTV Cable 75ohm 305m 1000FT Security Camera Coaxial Cable for CommunicationProduct Description 350m 500m 1000ft 75ohm Siamese Coax Cable for Satellite CATV CCTV Camera TV Satellite Foam Solid PE Rg59 with Power Cable RG6 with power RG6+2c Coaxial Cable 1.02CCS+4.57FPE + ......
Send Inquiry
Product Description
High Quality RG59 2C /RG6 CCTV Cable 75ohm 305m 1000FT Security Camera Coaxial Cable for Communication

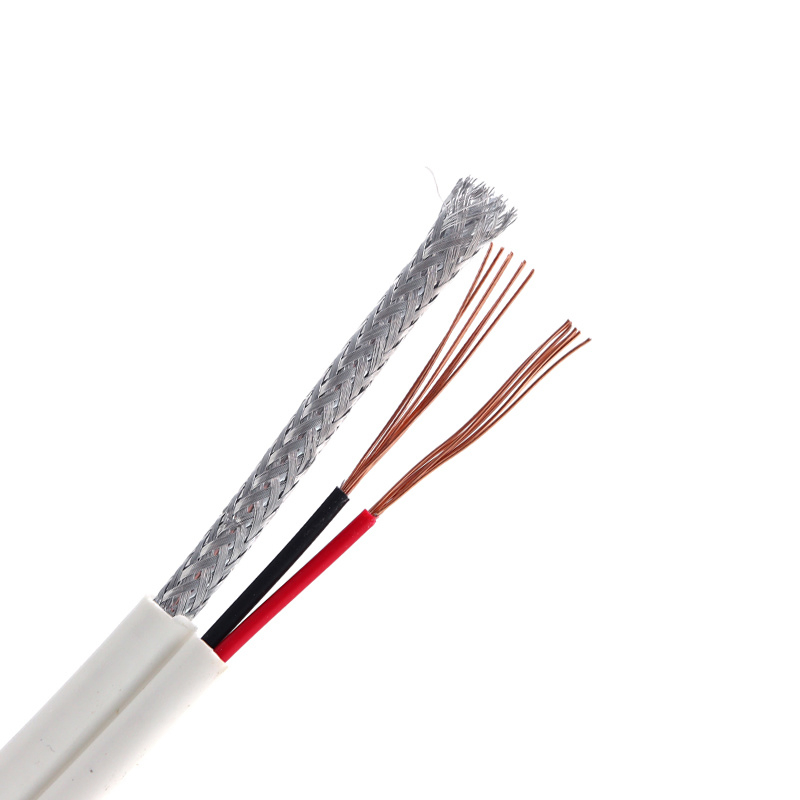

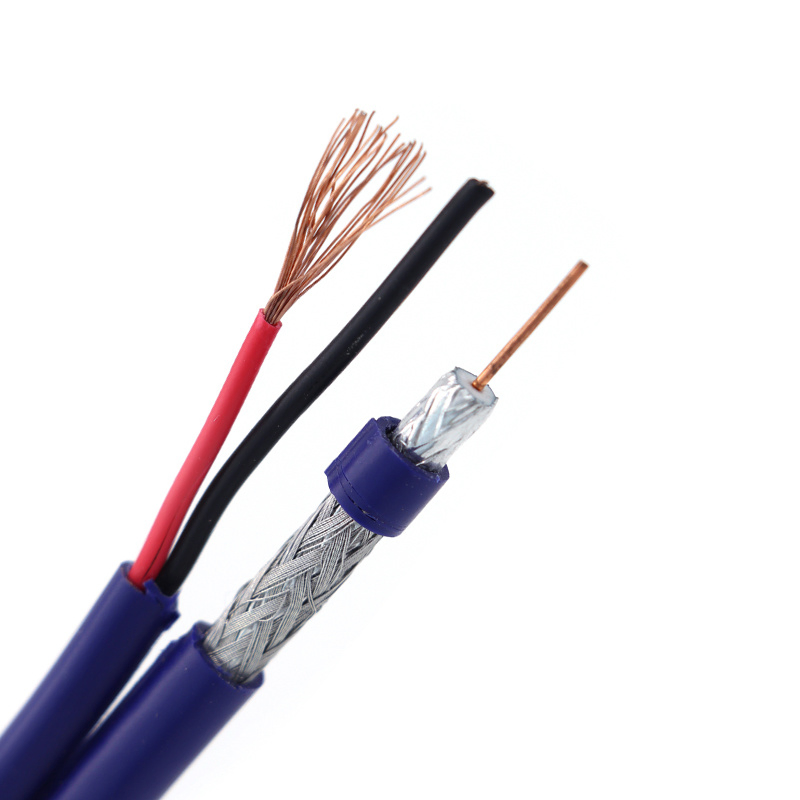

350m 500m 1000ft 75ohm Siamese Coax Cable for Satellite CATV CCTV Camera TV Satellite Foam Solid PE Rg59 with Power Cable RG6 with power RG6+2c Coaxial Cable

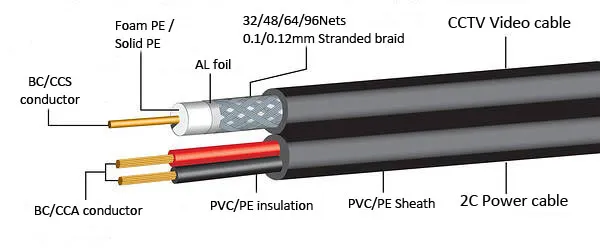

1.02CCS+4.57FPE + Al Foil/blue/bonded +80/96/128*0.12AL+6.91mm PVC(White/Black)
Inner Conductor (mm): 1.02± 0.01 BC / CCS
Dielectric (mm): 4.57± 0.10 FPE / SPE
Power wire : 7*0.37mm 0.75mm2/0.5mm2
Jacket (mm): 6.91± 0.1 PVC / PE
Dielectric (mm): 4.57± 0.10 FPE / SPE
Power wire : 7*0.37mm 0.75mm2/0.5mm2
Jacket (mm): 6.91± 0.1 PVC / PE
Structure | Material | RG6 DUAL | RG6TRI | RG6 QUAD |
Conductor | BC/CCS | 1.02mm(18AWG 0.04") | ||
Dielectric | FPE | 4.57mm(0.18") | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 40%-95% | 53% | |
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
4th Shield | BC or Al Braiding | - | - | 40% |
Jacket PVC/PE | Outer Diameter | 6.91mm(0.272'') | 7.02mm(0.276'') | 7.62mm(0.30'') |
Nominal Thickness | 0.76mm(0.032'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
| Power wire : | ||||
| Material : | CCA /COPPER | |||
| Size : | 7*0.37mm 0.75mm2 0.5mm2 | |||
