Network Cable with Power for CCTV Camera Cabling
Network Cable With Power For CCTV Camera Cablingnetwork cable with power utp ftp cat5e cat6 +2c power cable for cctv camera cablingDirections:Shielded/Unshielded twisted pairs* 23 or 24 AWG solid or stranded bare copper.* Insulation/Jacket Thickness: 0.2/0.6 mm.* Temperature range: -20°C~+75......
Send Inquiry
Product Description

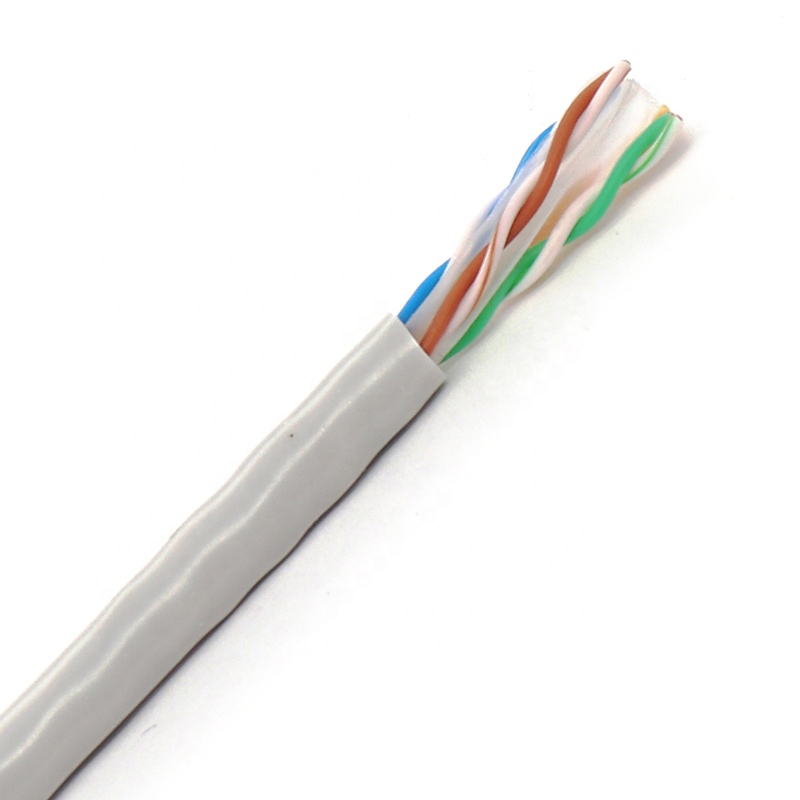

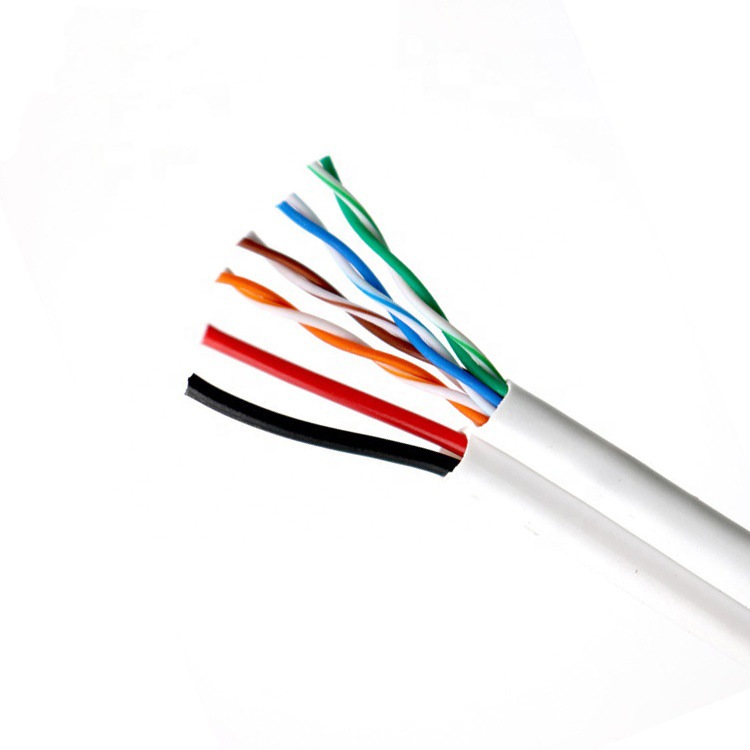

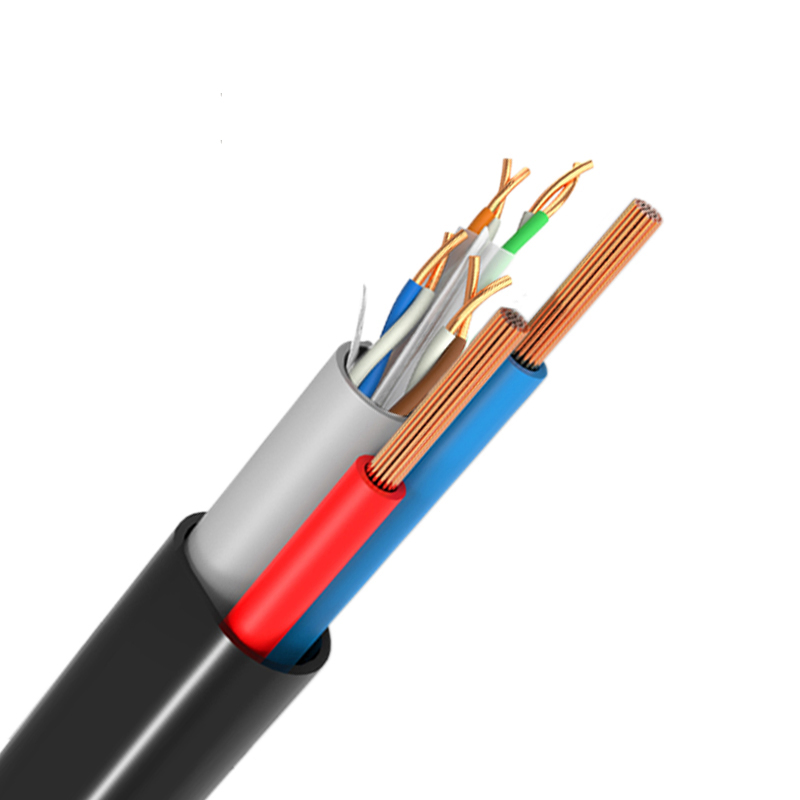

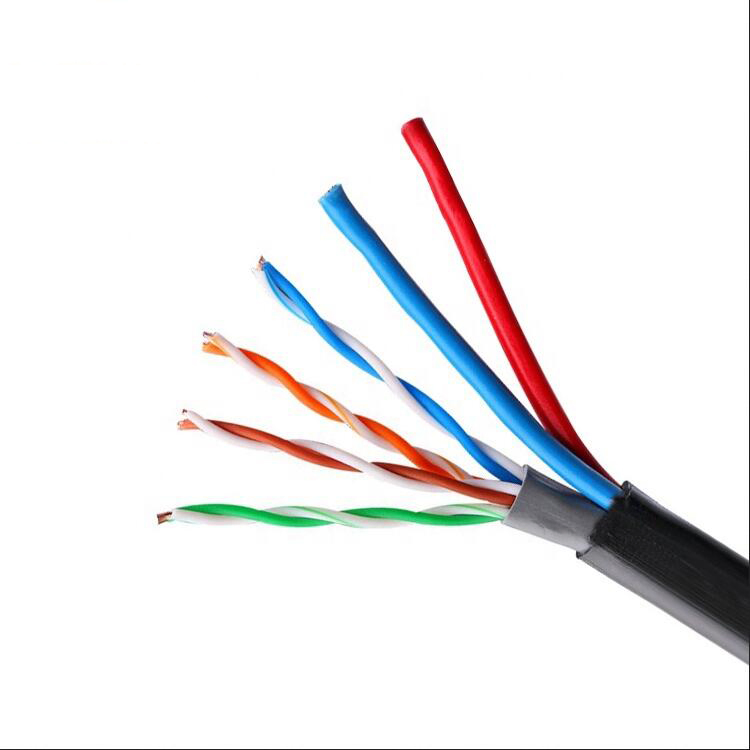

Network Cable With Power For CCTV Camera Cabling
network cable with power utp ftp cat5e cat6 +2c power cable for cctv camera cabling
Directions:
Shielded/Unshielded twisted pairs
* 23 or 24 AWG solid or stranded bare copper.
* Insulation/Jacket Thickness: 0.2/0.6 mm.
* Temperature range: -20°C~+75°C.
* Rid Cord, PE Cross, Drain Wire.
Reference Standard:
* TIA/EIA-568, CSAC22.2, ISO/IEC 11801, YD/T1019-2001
Product specifications:
| Model No. | Product specifications | Network core | Power core |
| 4core+2*0.3 | 2*2*1/0.45+RVV2*0.3 | 0.95 | 1.75 |
| 4core+2*0.5 | 2*2*1/0.48+RVV2*0.5 | 0.95 | 1.8 |
| 8core+2*0.5 | 4*2*1/0.48+RVV2*0.5 | 0.95 | 1.8 |
| 8core+2*0.75 | 4*2*1/0.48+RVV2*0.75 | 0.95 | 2.1 |
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
