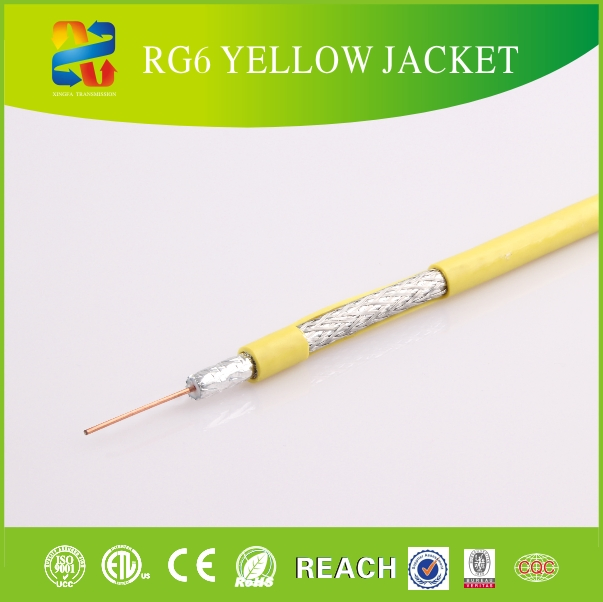

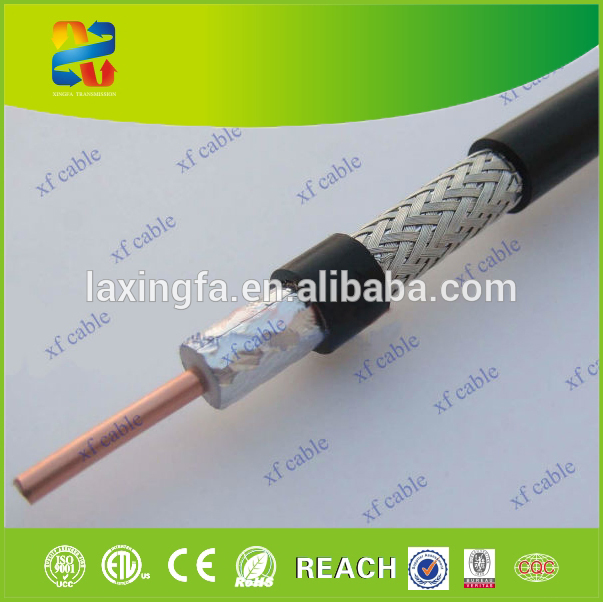

Outdoor Waterproof PVC Jacket Jelly Filled Coaxial Cable RG6
Ourdoor Waterproof PVC jacket jelly filled coaxial cable RG6 1.Product DescriptionConstruction(DUAL)Center Conductor:1.02+0.01mm Solid Copper/Copper Clad SteelDielectric:4.57+0.05mmFoam PEShield:Bonded Al FoilBraid Coverage:60%AlJacket:6.90+0.10mmPVCJelly/APDPer Customers' Special RequirementCh......
Send Inquiry
Product Description
1.Product Description
| Construction(DUAL) | |
| Center Conductor: | 1.02+0.01mm Solid Copper/Copper Clad Steel |
| Dielectric: | 4.57+0.05mmFoam PE |
| Shield: | Bonded Al Foil |
| Braid Coverage: | 60%Al |
| Jacket: | 6.90+0.10mmPVC |
| Jelly/APD | Per Customers' Special Requirement |
| Characteristics | |
| Sparker Test: | 4000VAC |
| Impedance: | 75+3 Ohm |
| Capacitance: | 54+3pF/m |
| Velocity of Propagation: | 82% (min) |
| Return Loss: | 20dB min (5-2300MHz) |
2.Attenuation
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.58 | 1.9 |
50 | 1.5 | 4.9 |
100 | 2.0 | 6.5 |
200 | 2.8 | 9.2 |
400 | 4.1 | 13.6 |
700 | 5.6 | 18.4 |
900 | 6.2 | 20.3 |
1000 | 6.5 | 21.4 |
1450 | 8.0 | 26.2 |
1800 | 8.5 | 27.9 |
2100 | 9.5 | 31.1 |
2250 | 10.0 | 34.0 |
3000 | 11.4 | 37.5 |
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
4) branch line, user line the connecting line and the internal supporting line for other high frequency machine

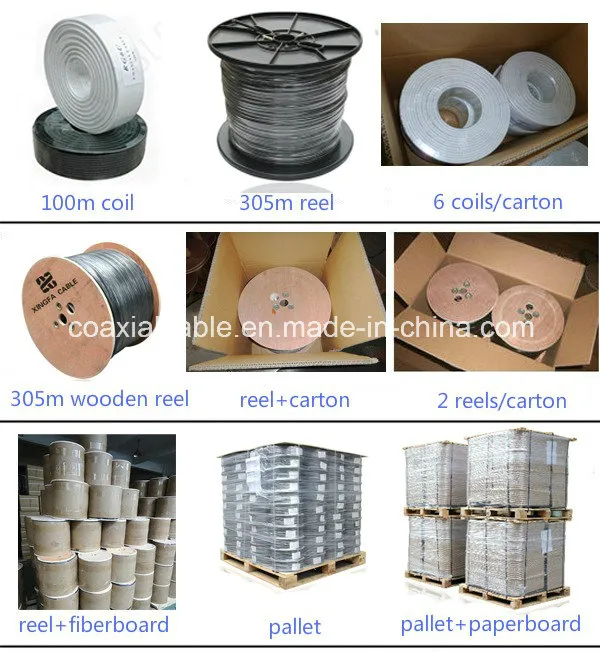

4.Packing:
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

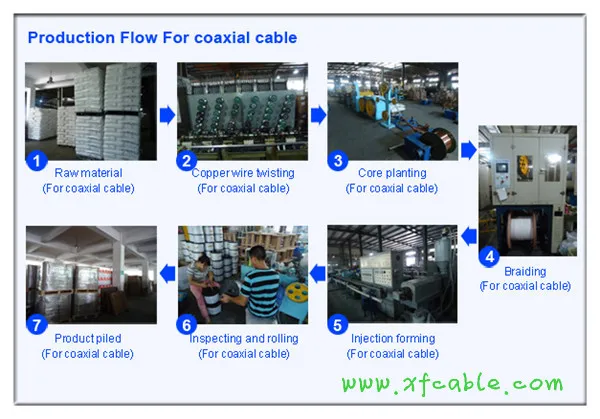

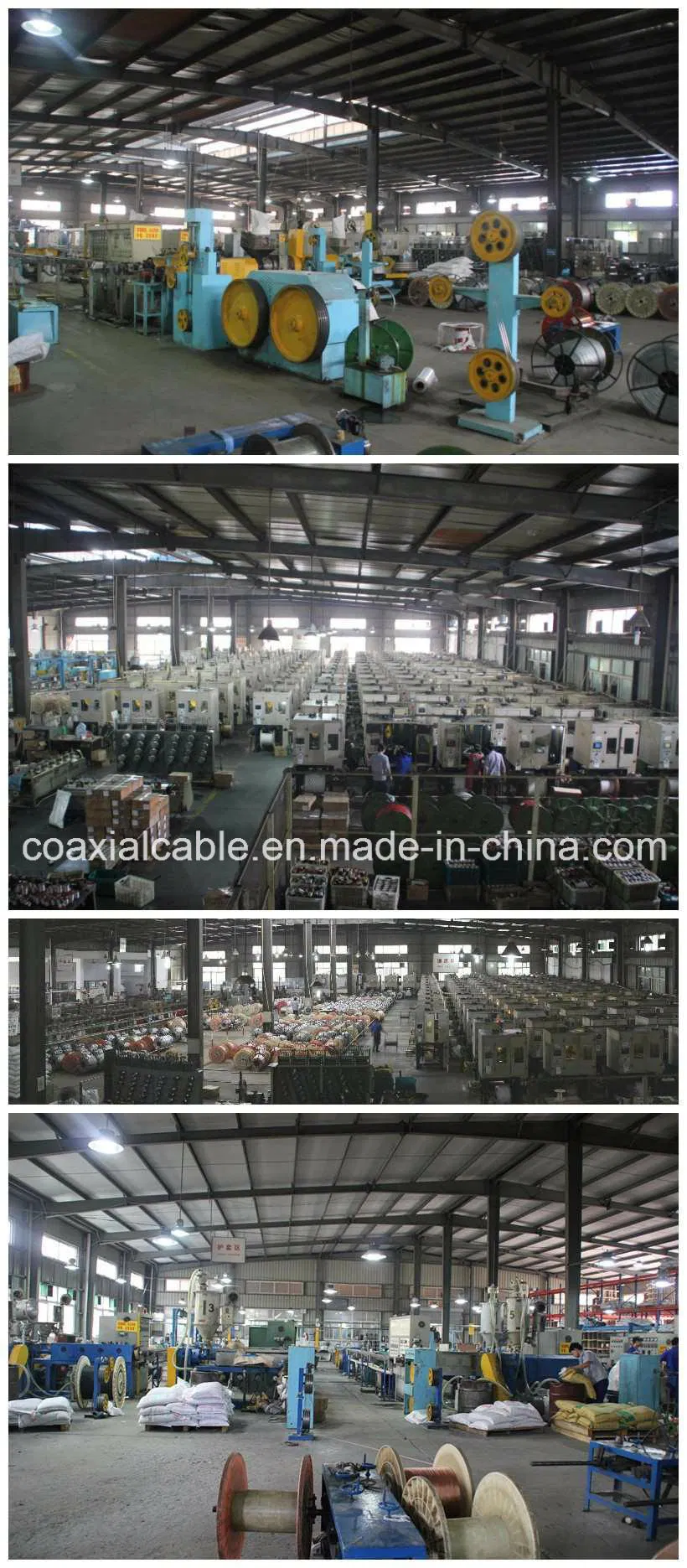

This is our factory pictures below.
