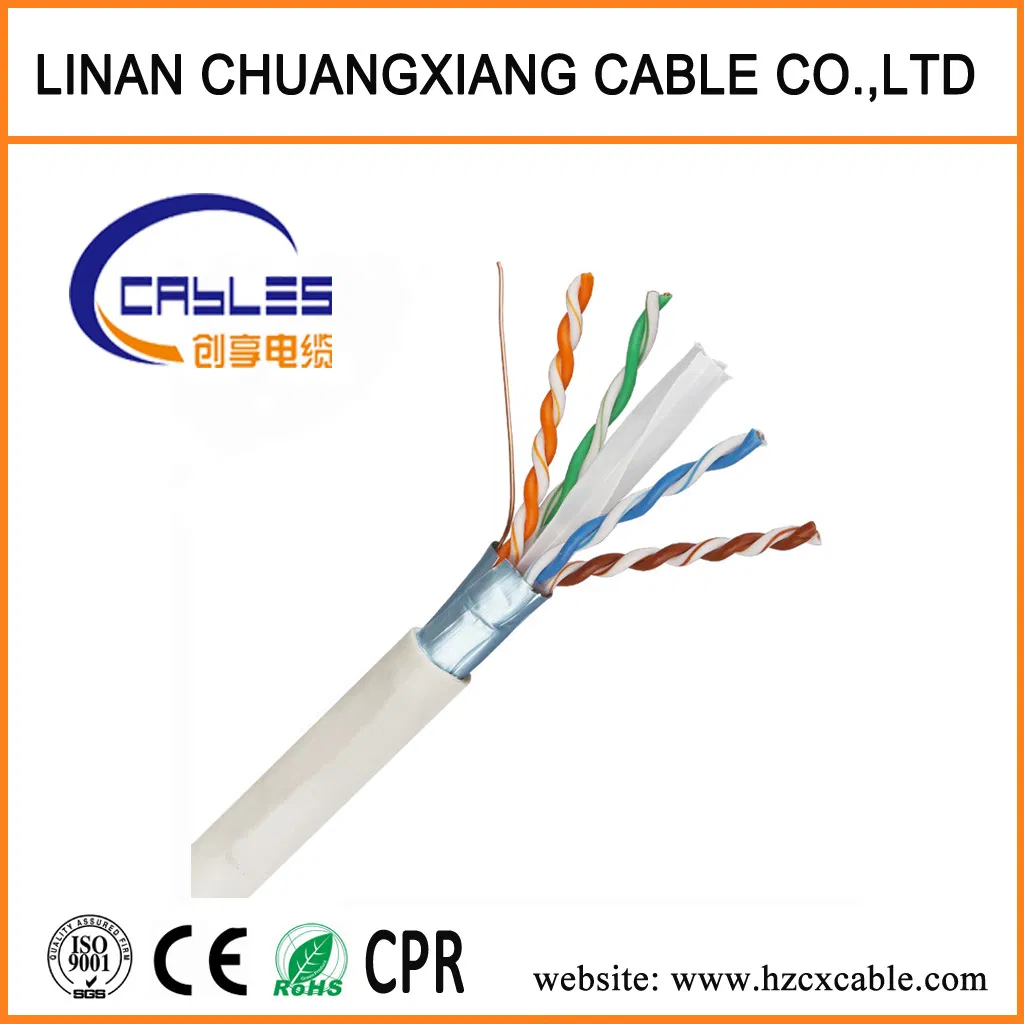

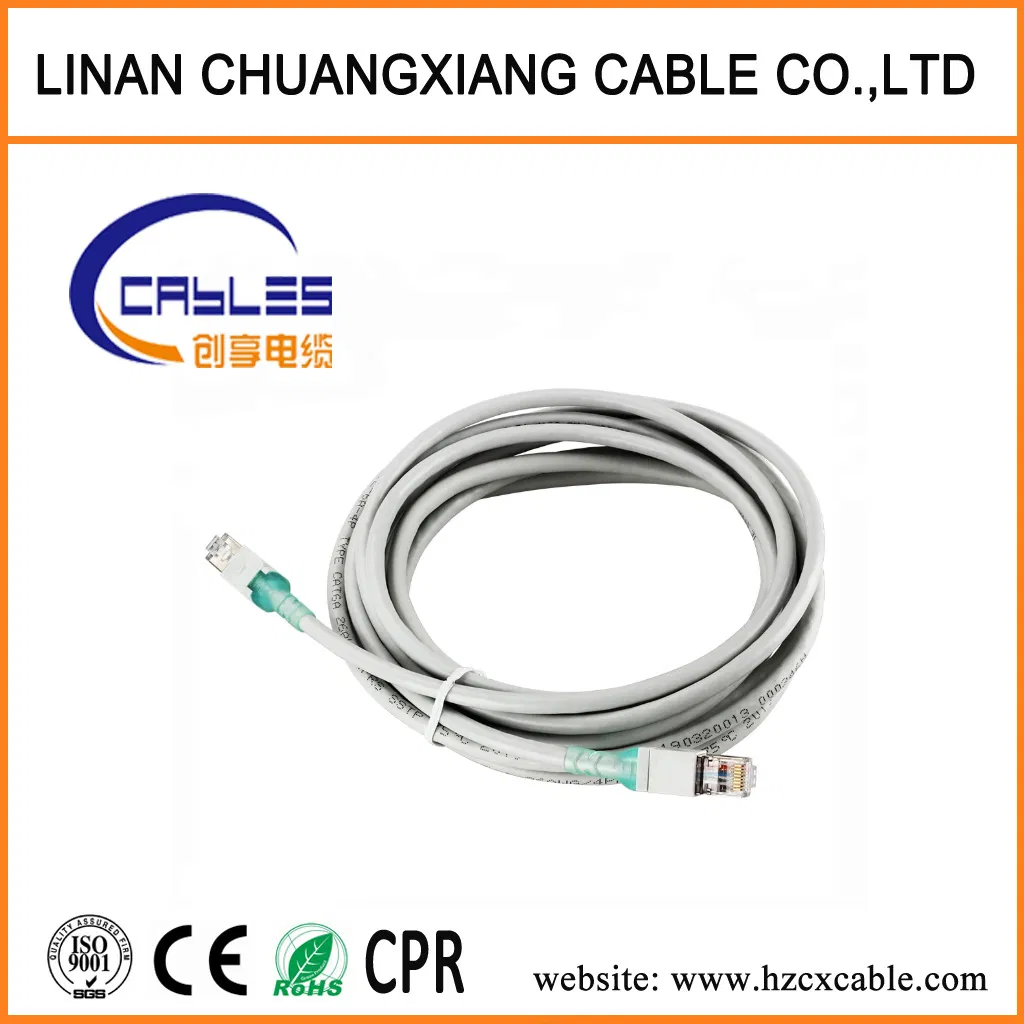

Patch Cord 1/3/ 5m FTP CAT6/Cat5e Shield Copper Wire Computer Network Cable
Material Instruction1.CCA or 100% Solid Bare Copper 23AWG.2.Eco-friendly,pollution-free and new materials selected.Promise new material only.3.Insulation: Solid HDPE;4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life. TypeFTP CAT6 Lan CableConductorCCA/23AWG Solid CopperI......
Send Inquiry
Product Description
Material Instruction
1.CCA or 100% Solid Bare Copper 23AWG.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
| Type | FTP CAT6 Lan Cable |
| Conductor | CCA/23AWG Solid Copper |
| Insulation material | PE |

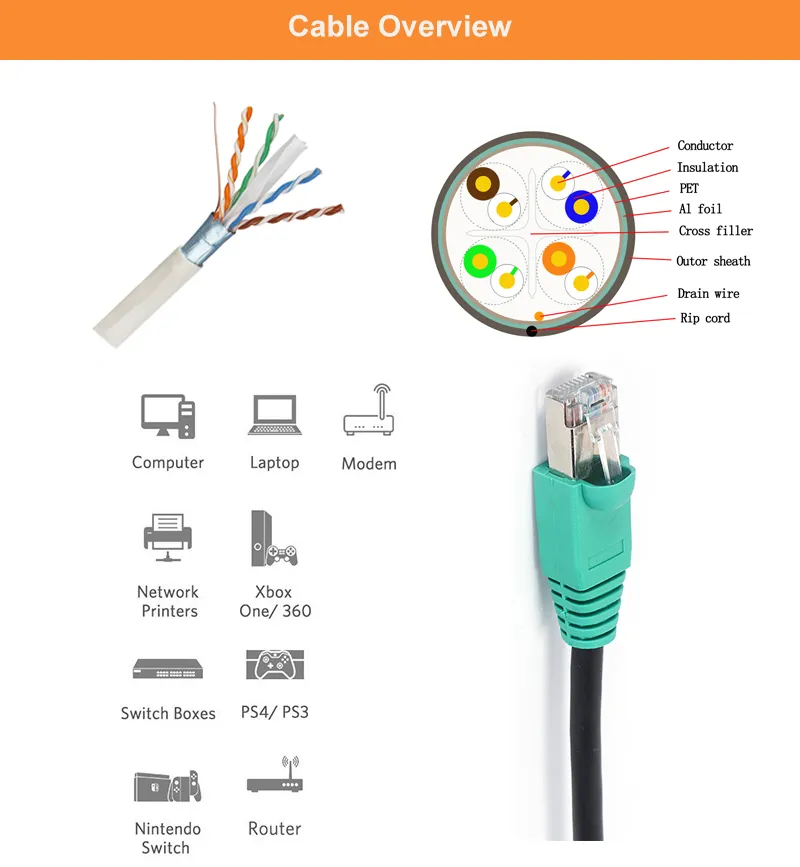

| Total number of insulated conductor | 8 cores, twisted in 4 pairs |
| Color code | white-blue/blue,white-orange/orange, white-green/green,white-brown/brown |
| Shielding | Aluminum foil |
| Operating temperature | -20 ° C - +60 ° C |
| Sheath | PVC/LSZH |
| Technical Performance (100m): | ||||||||
| Frequency | RL | ATT(20ºC) | NEXT | PHASE DELAY | Frequency | PSNEXT | ELFEXT | PSELFEXT |
| (MHz) | ≥dB | ≤dB | ≥dB | ≤ns | (MHz) | ≥dB | ≥dB | ≥dB |
| 1 | 20.0 | 2.03 | 74.3 | 570.00 | 1 | 72.3 | 67.8 | 64.8 |
| 4.0 | 23.0 | 3.78 | 65.3 | 552.00 | 4 | 63.3 | 55.8 | 52.8 |
| 8.0 | 24.5 | 5.32 | 60.8 | 546.73 | 8 | 58.8 | 49.7 | 46.7 |
| 10.0 | 25.0 | 5.95 | 59.3 | 545.38 | 10 | 57.3 | 47.8 | 44.8 |
| 16.0 | 25.0 | 7.55 | 56.2 | 543.00 | 16 | 54.2 | 43.7 | 40.7 |
| 20.0 | 25.0 | 8.47 | 54.8 | 542.05 | 20 | 52.8 | 41.8 | 38.8 |
| 25.0 | 24.3 | 9.51 | 53.3 | 541.20 | 25 | 41.3 | 39.8 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 31.25 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 62.5 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.80 | 44.3 | 537.60 | 100 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 200 | 37.8 | 21.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 250 | 36.3 | 19.8 | 16.8 |
| Delivery Time | Payment Terms | Shipping Method | |
| Samle Order | 1-3days | 100% in Advance | By Air |
| LCL Order | 3-25days | 30% Deposit and the Balance Paid Before Shipment Or Against B/L Copy | By Air Or By Sea |
| FCL Order | 25-45days | By Air Or By Sea |

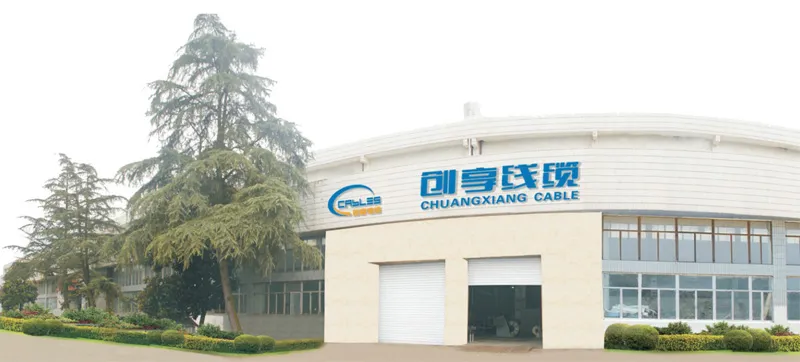

Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.
Our Main Products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interestd in our competitive products,pls call me,let's talk more!
