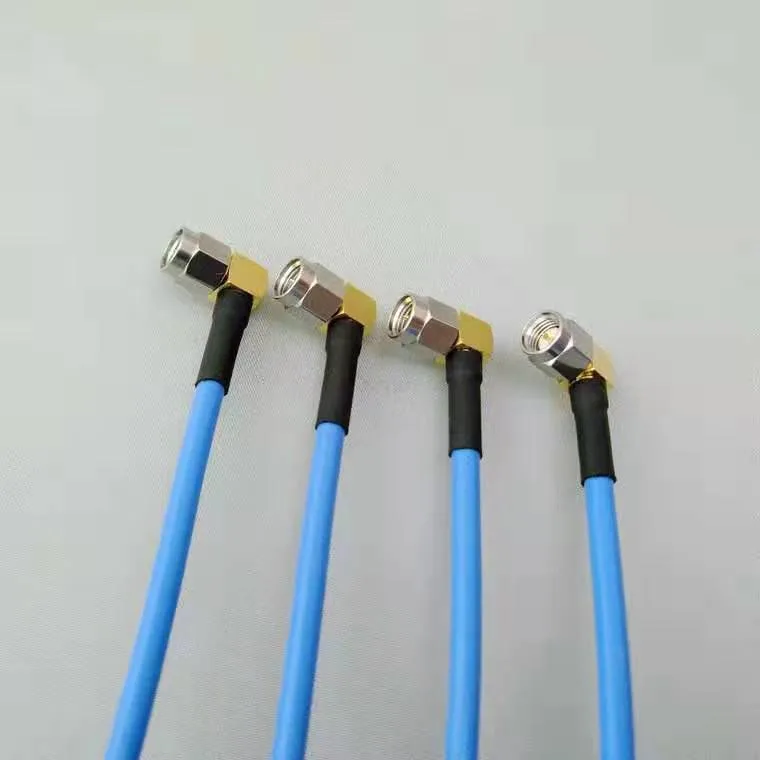

SMA Right Angle Connector Semi-Flexible 141 Stainless Steel Cable Assembly
SpecificationsElectrical SpecificationsConnector Impedance 50 ohmOperating Frequency Band0 - 12GHzRF Operating Voltage, maximum (vrms) 1000.00 VOuter Contact Resistance, maximum 2.0 mOhmInner Contact Resistance, maximum 3.0 mOhmInsulation Resistance, minimum 5000 MohmVSWR <1.25In......
Send Inquiry
Product Description
Specifications
Electrical Specifications
Mechanical Specifications
Environmental Specifications
Components
Electrical Specifications
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 - 12GHz |
| RF Operating Voltage, maximum (vrms) | 1000.00 V |
| Outer Contact Resistance, maximum | 2.0 mOhm |
| Inner Contact Resistance, maximum | 3.0 mOhm |
| Insulation Resistance, minimum | 5000 Mohm |
| VSWR | <1.25 |
| Insertion Loss | typical 0.05×√f dB+Cable Insertion Loss |
| Mating cycles | 500 cycles |
| Recommended mating torque | 0.7-1.1Nm |
| Operating Temperature | -40°C to +125 °C |
| Storage Temperature | -55°C to +125 °C |
| Name | Material | Plating |
| Body | Brass | Gold |
| Inner Contact | Beryllium bronze | Gold |
| Insulator | PTFE | --- |
Company Show
EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.
Our Customers

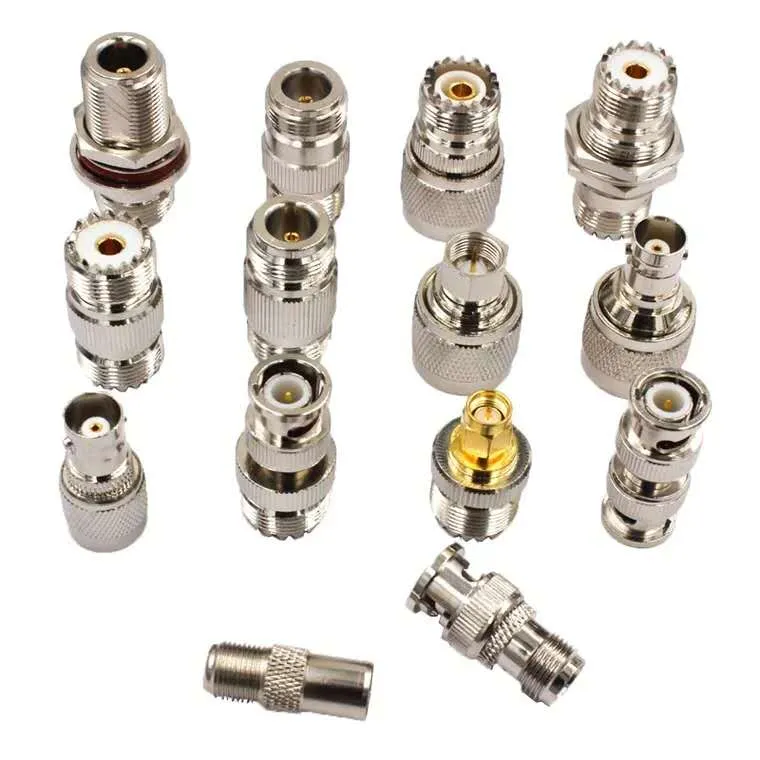

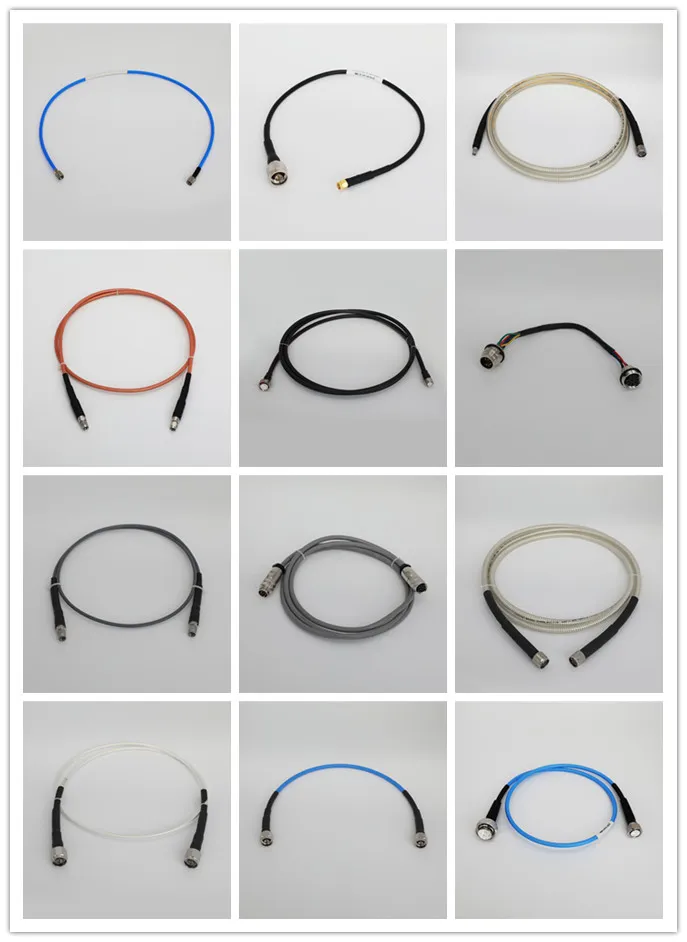

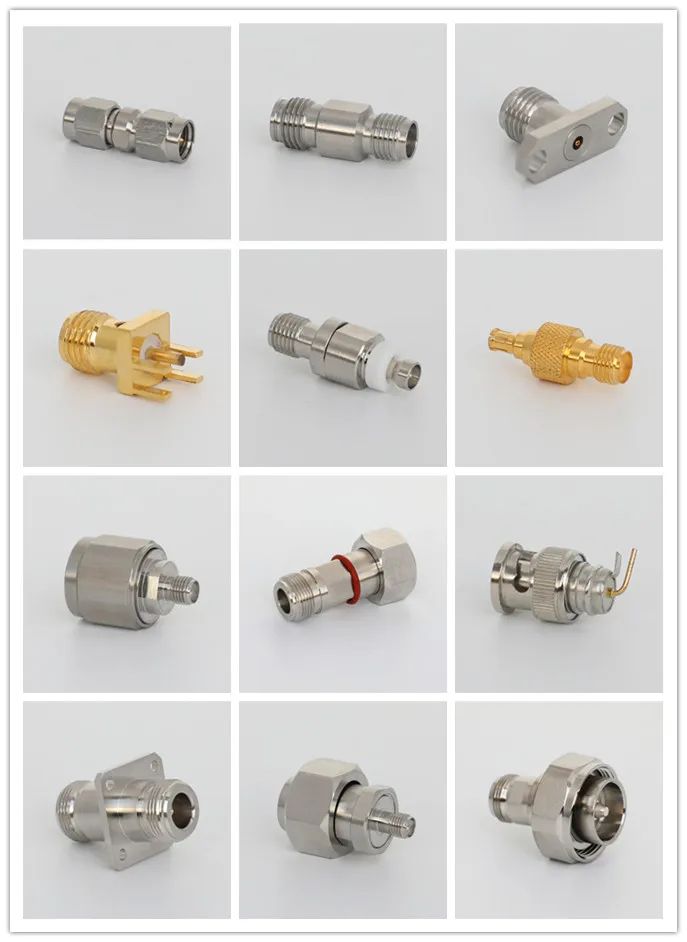

Company Products and Technologies
Customers Testimonials

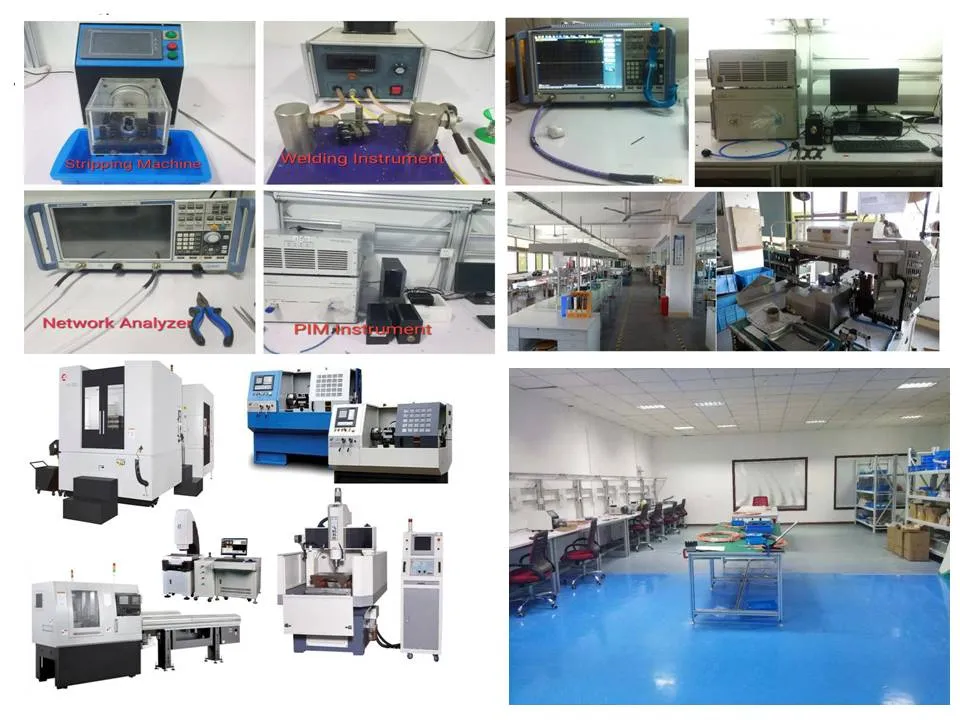

Main Company Equipments And Production line
